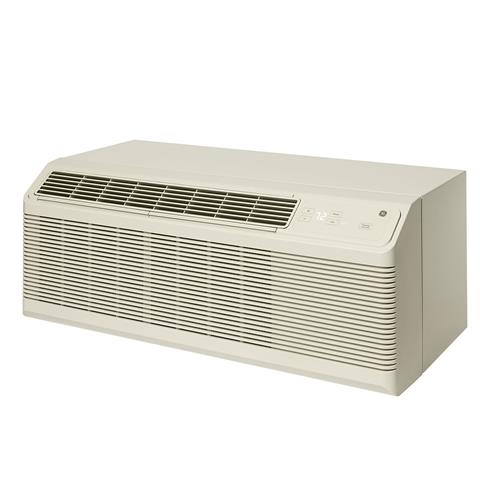

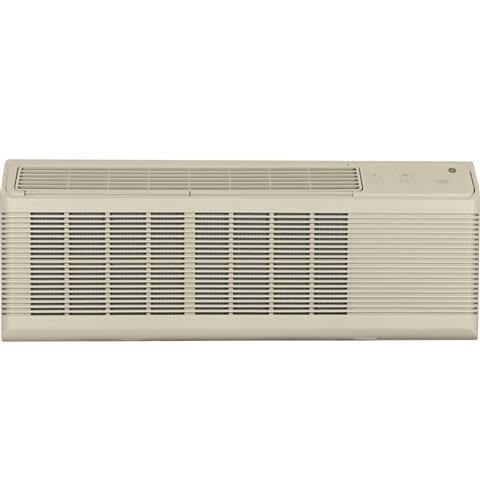

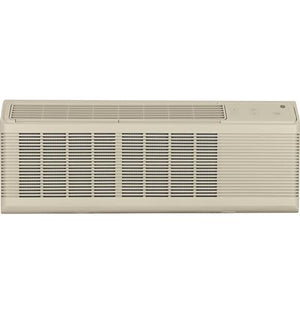

GE Zoneline Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt

GE Zoneline Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
• Features:
• ENERGY EFFICIENCY: 10.5/10.5 EER
• QUIET OPERATION: Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

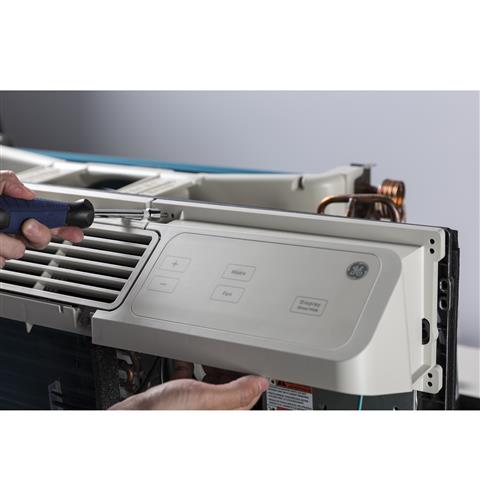

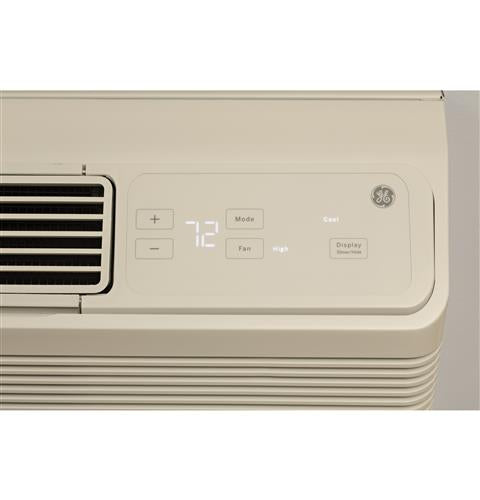

• Electronic touch controls with LED display

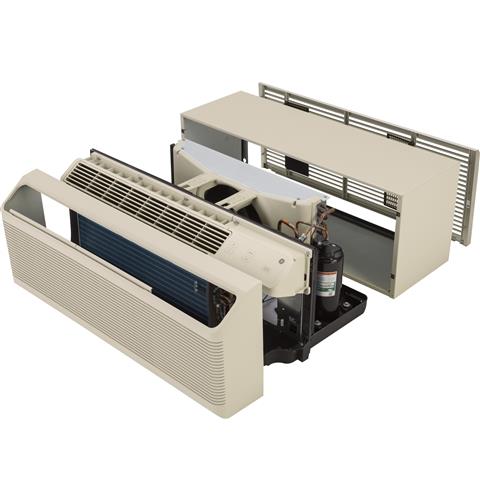

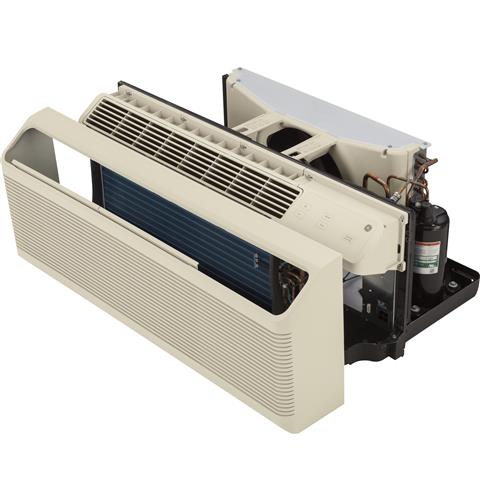

• SIMPLIFIED STRUCTURE: Easy to maintain and service
• Cooling capacity: 14,600/14,500 BTU
• Dehumidification: 4.6 pints/hour
• Indoor fan CFM (high/low): 449/300
• Fresh air vent CFM (fully open high fan): 47
• Corrosion resistant: Extends life of the unit in sea coast areas/corrosive environments

• Specs:
• FEATURES
• Sensible Heat Ratio: 63%
• Chassis Type: Slide-In
• Control Type: Coverless Backlit White LED Touch Controls
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling
• Hi/Low Fan Only
• Hi/Low Heating

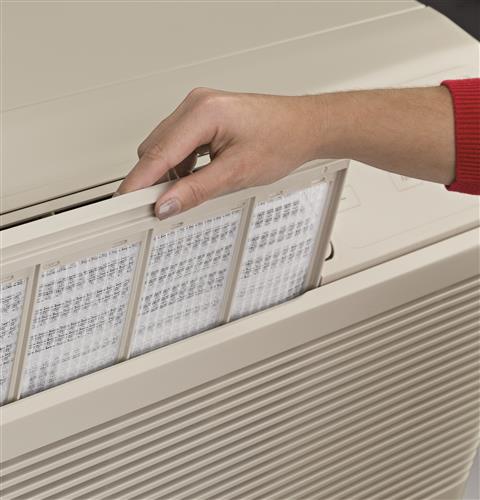

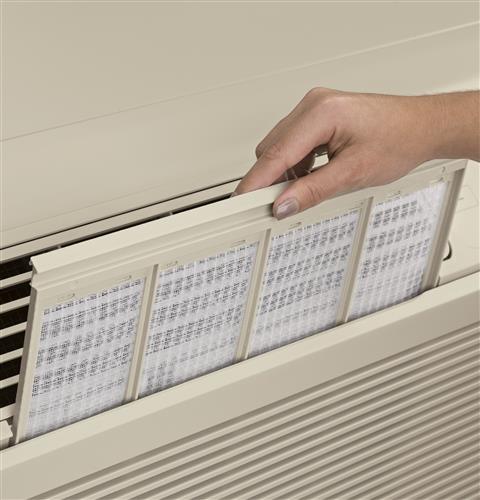

• Filter Type: Rigid Frame
• Slide-Out
• Heat - Cool: Yes
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Rotary Compressor: Yes
• Temperature Limiting: Electronic 7-Step
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control
• Outdoor Vent Control - 3 Positions
• Vent Air Filter
• Zoneline Features: Sleep Mode
• Smart Fan Fan Cycle Control
• Auto Power Recovery
• Automatic Indoor Frost Control
• Central Desk Control Compatibility
• Freeze Sentinel
• Heat Sentinel (85F)
• LCDI Power Cord
• Proportional - Integral ID Airflow

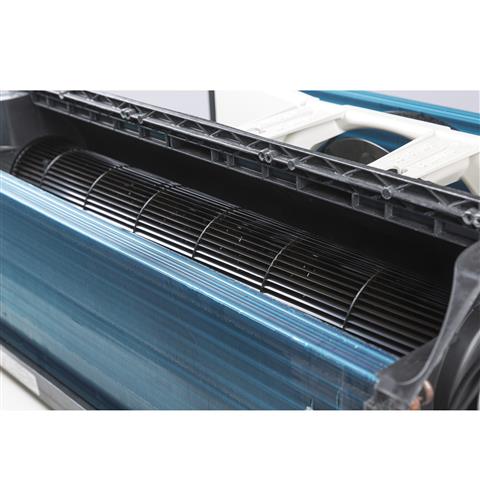

• Random Twist/Length Segment Tangential Blower
• Remote Thermostat Compatibility
• Universal Heaters

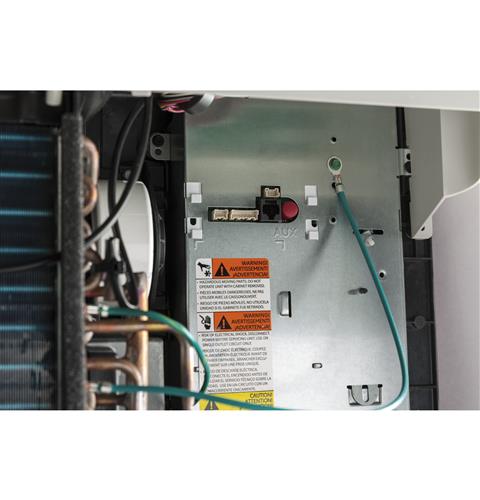

• Weather Protected Electrical Components
• Temperature Range: 60 - 85 F
•
• OTHER SPECIFICATIONS
• Cooling BTUH (MIN): 14500.0 Btu
• Cooling BTUH (MAX): 14600.0 Btu
• Cooling EER (BTUH / Watt): 10.5/10.5
• CFM Indoor Fan High: 449
• CFM Indoor Fan Low: 300
• Dehumidification (pts./hr.): 4.6
• Vent CFM (high fan at zero ESP): 47
• Approximate Shipping Weight: 110 lb
• Net Weight: 110 lb
• Cooling - Amperes; F.L. - Cooling: 6.3/6.7
• Cooling - Amperes; L.R.: 31.5
• Cooling - Watts: 1390/1380
• Power Factor: 97
• Voltage (MIN): 208.0 V
• Voltage (MAX): 230.0 V
• CUL
• UL
• AHRI
• NRCAN
• Parts Warranty: Limited 1-year entire appliance
• Limited 5-year sealed refrigerating system
• Labor Warranty: Limited 1-year entire appliance
• Limited 5-year sealed refrigerating system
• Warranty Notes: See written warranty for full details
•
