GE® Tankless Electric Water Heater

GE® Tankless Electric Water Heater
• Features:
• Unlimited Hot Water on Demand : Tankless electric water heater provides instant, continuous water flow

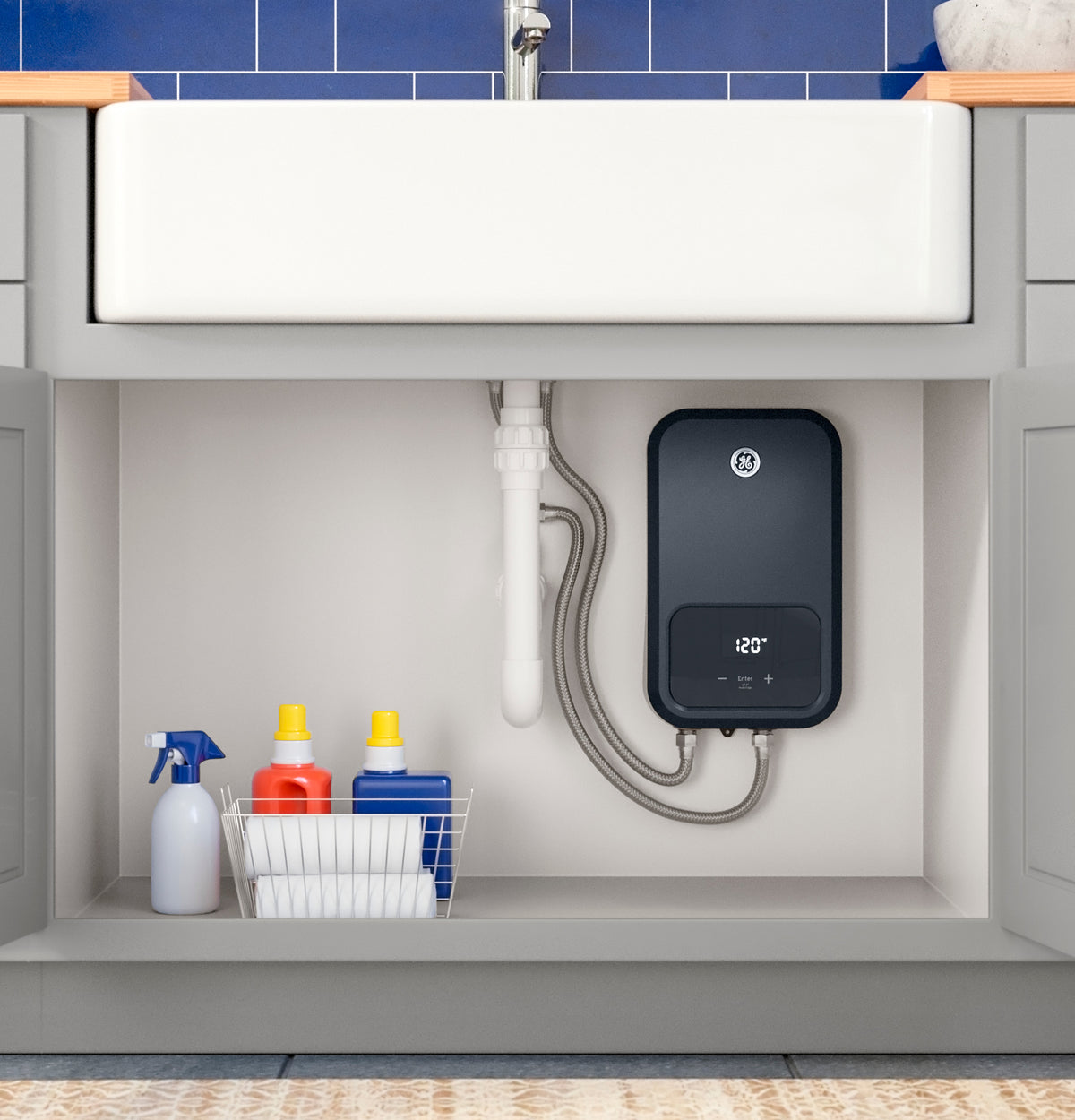

• Point of Use : Installs at the point of use, for hot water where you need it
• Performance Up to 2.9 Gallons Per Minute (GPM) : Enough to run 2 faucets and 1 shower simultaneously in warm climates (*Results are based on 72°F inlet water temperature and 105°F outlet water temperature)

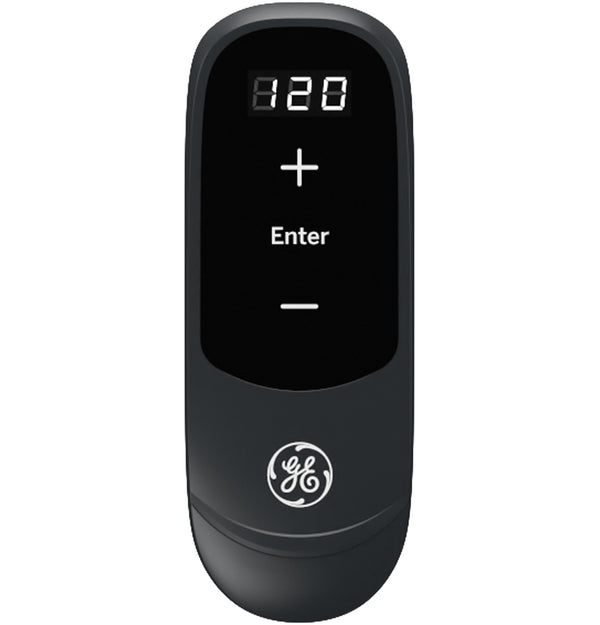

• Remote Control : Conveniently change temperature settings and control your unit from up to 30' away
• Intuitive Design : Adjust temperature and settings with easy-use touch screen
• Energy Efficient : Conserves energy and water by only using energy when hot water is in use, saving you money
• Space Saver : Compact design takes up significantly less space than a tank style water heater

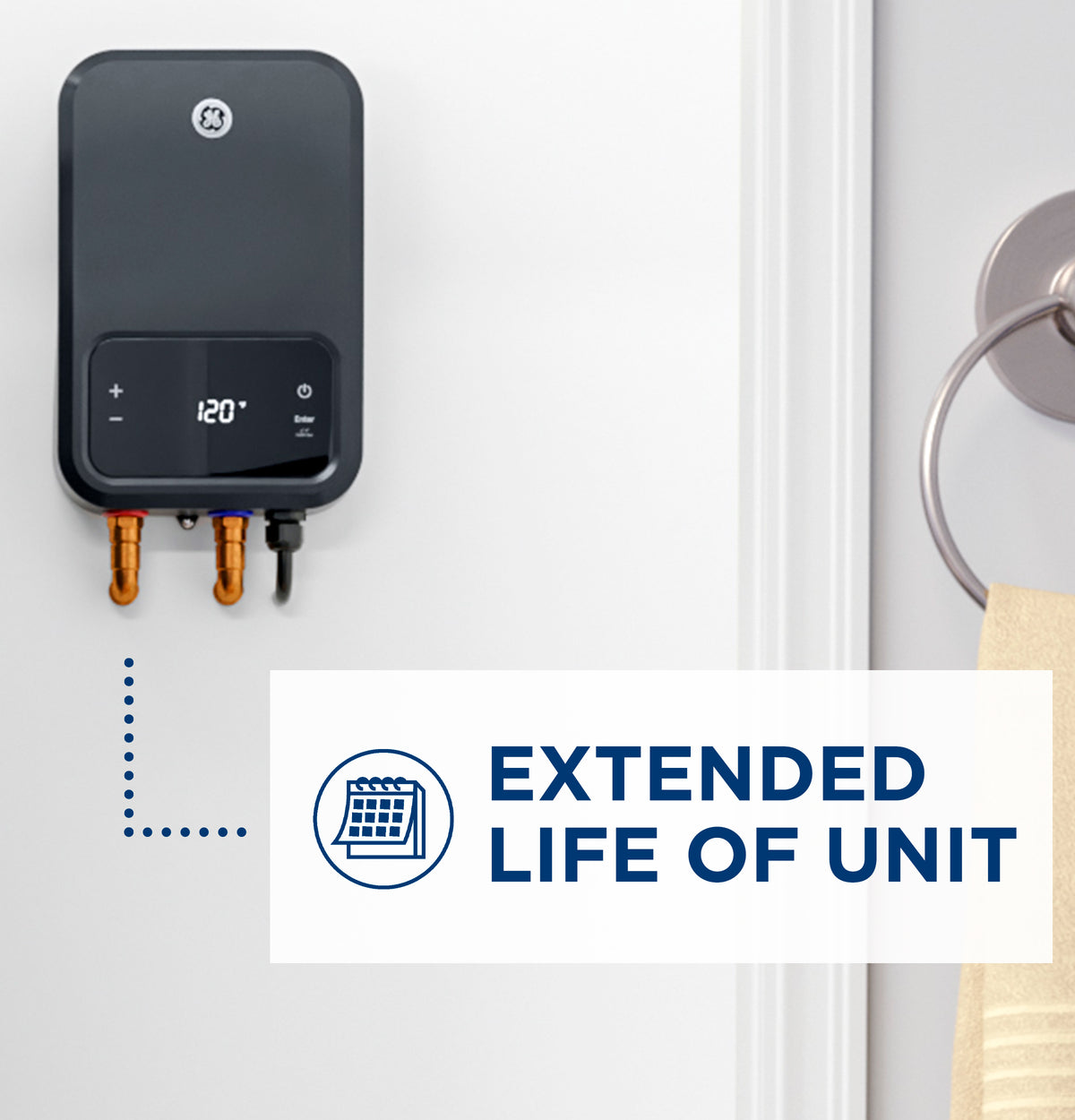

• Scale Reduction Technology : Extends the life of the unit by shielding heating element from water and scale buildup
• Self Modulating Technology : Utilizes inlet and outlet temperature sensors to optimize energy usage and keep water temperature consistent
• Easy Installation : Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation
• Digital Temperature Control : Easily set temperatures in 1° increments ranging from 86°F to 140°F
• Fahrenheit or Celsius : Switch temperature units with a simple tap on an easy-read digital display
• Warranty Length : 5-year Limited Replacement Warranty

• Specs:
• FEATURES
• Uniform Energy Factor (UEF) : >0.91
• Flowrate (GPM) @ 47 F inlet : 1.79
• Flowrate (GPM) @ 37 F inlet : 1.5
• Flowrate (GPM) @ 77 F inlet : 3.4
• Flowrate (GPM) @ 62 F inlet : 2.29
• Min. operating pressure (psi) : 25
• Controls : Adjust degree Fahrenheit/Celsius, Adjustable Temperature, Digital Electronic Control
• Max. operating pressure (psi) : 150
• Max: operating pressure (psi) : 150
• Fuel Type : Electric
• Flowrate (GPM) @ 57 F inlet : 2.09
• Configuration : Space Saver
• Installation Location : Indoor
• Flowrate (GPM) @ 72 F inlet : 2.9
• Temperature adjustment amount (degree) : 1
• Activation Flowrate (GPM) : = 0.4
• Temperature Setting Factory Default : 105° F
• Product Type : Electric Tankless
• Flowrate (GPM) @ 52 F inlet : 2
• Integrated Safety Devices : Flow sensor¶High limit thermostat (on each heating element)¶Inlet Temperature Sensor¶Material Rated for Ignition Containment¶Outlet Temperature Sensor
• Maximum Outlet Temperature (F) : 140
• Water Connection Location : Bottom
• Point of Use : Yes
• Cold/hot water connections (inches) : 1/2" Cold Water Inlet; 1/2" Hot Water Outlet
• Flowrate (GPM) @ 67 F inlet : 2.59
• Temperature Setting : 86-140° F Range
• Flowrate (GPM) @ 42 F inlet : 1.7
•
• OTHER SPECIFICATIONS
• Installation : Wall Mounted
• Approximate Shipping Weight : 10.1 lb
• Overall Width : 8.5 in
• Overall Height : 14.2 in
• Product Height (to top of unit) : 14.2 in
• Power Rating-kW : 14.6
• Amps : 60.8
• Parts Warranty : 5-year Limited Replacement Warranty
• Net Weight : 9.7 lb
• Color Appearance : Diamond Gray
• Product Diameter : 8.5 in
• Voltage (MAX) : 240 V
• Overall Depth : 2.4 in
• Electrical Circuit Required : 70 Amp
•
