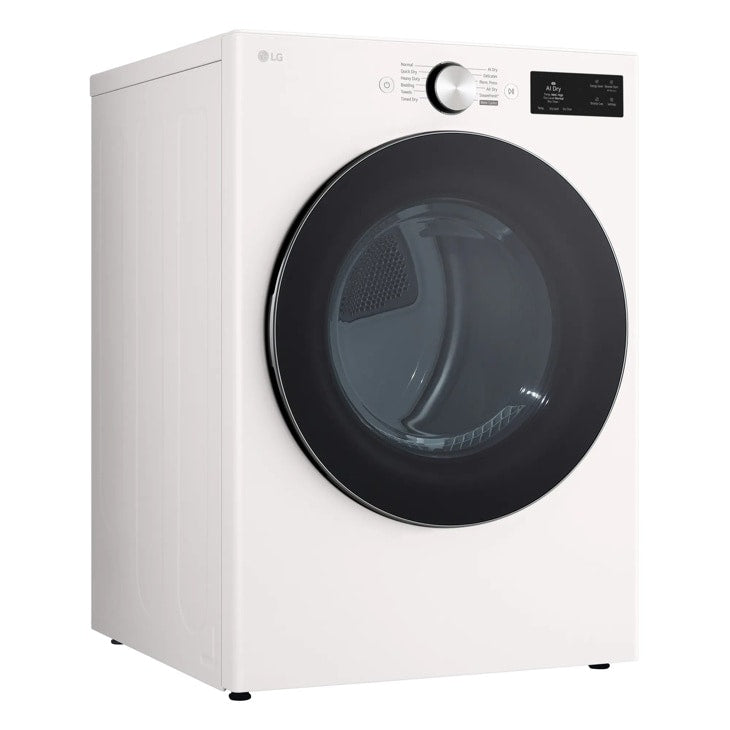

7.4 cu. ft. Ultra Large Capacity Smart Front Load Electric Dryer with TurboSteam, AI Sensing and Hybrid Electronic Controls with LCD Display
• Features:
• Enjoy a 2-year limited warranty on select appliances purchased through December 31, 2026 via the ThinQ® app. Terms apply.ᶲ
• 7.4 cu. ft. Ultra Large Capacity lets you clean larger loads
• Built-in intelligence takes out the guesswork—AI Sensor Dry™ selects optimal dry settings
• SteamFresh™ Cycle with TurboSteam™ Technology refreshes clothes in between washes
• Pet Care Cycle helps reduce odors in pet clothes, toys and blankets so they come out smelling fresh
• Dial controls get a modern upgrade with an intuitive touch panel, LCD display and sleek design
• Get the ThinQ® app to access smart functions, ThinQ Care™ alerts and download new ThinQ UP™ features
• FlowSense® Duct Clogging and Lint Filter Indicators help keep dryer clean, efficient and safe
• Specs:
• SUMMARY
• Series: LG
• Product Color: Alpine White (A)
• Type: Front Load Dryer
• Matching Washer: WM5800HAA
• Hard Buttons: No
• Steam: Yes
• Dial-A-Cycle™: Yes
• Touch Buttons: Yes
•

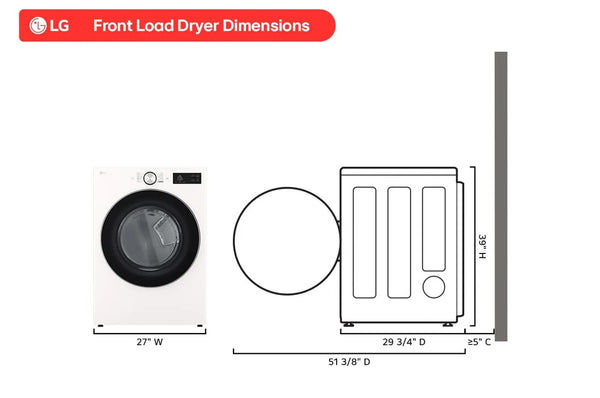

• DIMENSIONS
• Carton (WxHxD): 29" x 43 1/4" x 31 1/8"
• Weight (Product): 120.5 lbs
• Weight (Carton): 127.1 lbs
• Depth with Door Open: 51 3/8"
• Product (WxHxD): 27" x 39" x 29 3/4"
• Pedestal (WxHxD): 27" x 13 5/8" x 28" (43 7/8" D with door open)
•
• ENERGY
• CEF: 3.94
• ENERGY STAR Certified: Yes
•
• MATERIALS AND FINISHES
• Door Cover: Tempered Glass Door
• Cabinet: Painted Steel
• All Available Colors: Alpine White (A), Graphite Steel (V)
• Aluminized Alloy Steel Drum: Yes
• NeveRust™ Stainless Steel Drum: No
•
• OTHER SPECIFICATIONS
• POWER SOURCE: Dryer BTU Rating: N/A
• POWER SOURCE: Dryer Electrical Requirements: 120/240V, 60Hz, 26A (120/208V, 60Hz, 23A)
• POWER SOURCE: Ratings: CSA Listed
• POWER SOURCE: Dryer Power Source Type: Electric
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: SmartDiagnosis™ (v3.0): Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: ThinQ Care™: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: Wi-Fi: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: NFC Tag On: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: Energy Monitoring: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Vent Type: Vented
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Venting Option: 4 Way Venting
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Control Lock: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: 4 Adjustable Legs: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: End of Cycle Signal: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: 3 Minute Installation Check: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Reversible Door: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: FlowSense™ Duct Clogging Indicator: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Drum Light: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Remaining Time Display/Status Indicator(s): Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Wrinkle Care Option: Yes
• LAUNDRY APPLIANCE CAPACITY: Capacity: 7.4 cu. ft.
• OPTIONS/ACCESSORIES: LP Conversion Kit: N/A
• OPTIONS/ACCESSORIES: Pedestal: WDP6A
• OPTIONS/ACCESSORIES: Side Venting Kit: 383EEL9001B
• FABRIC CARE FEATURES: AI Sensor Dry™: Yes
• FABRIC CARE FEATURES: Sensor Dry: Yes
• FABRIC CARE FEATURES: Precise Temperature Control with Variable Compressor: No
• FABRIC CARE FEATURES: Precise Temperature Control with Variable Heater: Yes
• WARRANTY & UPC: Drum: 3 Years
• WARRANTY & UPC: Parts and Labor: 1 Year
• WARRANTY & UPC: UPC: 195174126370
• DRYER PROGRAMS: Manual Dry Times: 10 min ~ 100 min (5 min incremental)
• DRYER PROGRAMS: Temperature Settings: High, Low, Medium, Med Low, Med High
• DRYER PROGRAMS: Drying Levels: Damp Dry, Less Dry, More Dry, Normal Dry, Very Dry
• DRYER PROGRAMS: Dryer Options: Low Static, Signal, Smart Diagnosis, Steam, Damp Signal, Drum Light, Remote Start, Wi-Fi, Energy Saver, "More Cycles" Edit, Wrinkle Care
• DRYER PROGRAMS: Dryer Programs: AI Dry, Activewear, Blanket Refresh, Easy Ironing, Jeans, Large Load, Overnight Dry, Power Dry, Rack Dry, Quick Dry, SteamFresh™, Timed Dry, Towels, XL Load, Wrinkle Prevention, Air Dry, Perm. Press, Pet Care, Low Temp Dry, SteamSanitaryᵀᴹ, Super Dry, Bedding, Delicates, Heavy Duty, Normal, Small Load
• DRYER PROGRAMS: Dry Modes: No
• DRYER PROGRAMS: No. of Dryer Options: 11
• DRYER PROGRAMS: No. of Dryer Programs: 26
•
• Features:
• Enjoy a 2-year limited warranty on select appliances purchased through December 31, 2026 via the ThinQ® app. Terms apply.ᶲ
• 7.4 cu. ft. Ultra Large Capacity lets you clean larger loads
• Built-in intelligence takes out the guesswork—AI Sensor Dry™ selects optimal dry settings
• SteamFresh™ Cycle with TurboSteam™ Technology refreshes clothes in between washes
• Pet Care Cycle helps reduce odors in pet clothes, toys and blankets so they come out smelling fresh
• Dial controls get a modern upgrade with an intuitive touch panel, LCD display and sleek design
• Get the ThinQ® app to access smart functions, ThinQ Care™ alerts and download new ThinQ UP™ features
• FlowSense® Duct Clogging and Lint Filter Indicators help keep dryer clean, efficient and safe
• Specs:
• SUMMARY
• Series: LG
• Product Color: Alpine White (A)
• Type: Front Load Dryer
• Matching Washer: WM5800HAA
• Hard Buttons: No
• Steam: Yes
• Dial-A-Cycle™: Yes
• Touch Buttons: Yes
•
• DIMENSIONS
• Carton (WxHxD): 29" x 43 1/4" x 31 1/8"
• Weight (Product): 120.5 lbs
• Weight (Carton): 127.1 lbs
• Depth with Door Open: 51 3/8"
• Product (WxHxD): 27" x 39" x 29 3/4"
• Pedestal (WxHxD): 27" x 13 5/8" x 28" (43 7/8" D with door open)
•
• ENERGY
• CEF: 3.94
• ENERGY STAR Certified: Yes
•
• MATERIALS AND FINISHES
• Door Cover: Tempered Glass Door
• Cabinet: Painted Steel
• All Available Colors: Alpine White (A), Graphite Steel (V)
• Aluminized Alloy Steel Drum: Yes
• NeveRust™ Stainless Steel Drum: No
•
• OTHER SPECIFICATIONS
• POWER SOURCE: Dryer BTU Rating: N/A
• POWER SOURCE: Dryer Electrical Requirements: 120/240V, 60Hz, 26A (120/208V, 60Hz, 23A)
• POWER SOURCE: Ratings: CSA Listed
• POWER SOURCE: Dryer Power Source Type: Electric
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: SmartDiagnosis™ (v3.0): Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: ThinQ Care™: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: Wi-Fi: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: NFC Tag On: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES: Energy Monitoring: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Vent Type: Vented
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Venting Option: 4 Way Venting
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Control Lock: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: 4 Adjustable Legs: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: End of Cycle Signal: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: 3 Minute Installation Check: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Reversible Door: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: FlowSense™ Duct Clogging Indicator: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Drum Light: Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Remaining Time Display/Status Indicator(s): Yes
• LAUNDRY APPLIANCE CONVENIENCE FEATURES: Wrinkle Care Option: Yes
• LAUNDRY APPLIANCE CAPACITY: Capacity: 7.4 cu. ft.
• OPTIONS/ACCESSORIES: LP Conversion Kit: N/A
• OPTIONS/ACCESSORIES: Pedestal: WDP6A
• OPTIONS/ACCESSORIES: Side Venting Kit: 383EEL9001B
• FABRIC CARE FEATURES: AI Sensor Dry™: Yes
• FABRIC CARE FEATURES: Sensor Dry: Yes
• FABRIC CARE FEATURES: Precise Temperature Control with Variable Compressor: No
• FABRIC CARE FEATURES: Precise Temperature Control with Variable Heater: Yes
• WARRANTY & UPC: Drum: 3 Years
• WARRANTY & UPC: Parts and Labor: 1 Year
• WARRANTY & UPC: UPC: 195174126370
• DRYER PROGRAMS: Manual Dry Times: 10 min ~ 100 min (5 min incremental)
• DRYER PROGRAMS: Temperature Settings: High, Low, Medium, Med Low, Med High
• DRYER PROGRAMS: Drying Levels: Damp Dry, Less Dry, More Dry, Normal Dry, Very Dry
• DRYER PROGRAMS: Dryer Options: Low Static, Signal, Smart Diagnosis, Steam, Damp Signal, Drum Light, Remote Start, Wi-Fi, Energy Saver, "More Cycles" Edit, Wrinkle Care
• DRYER PROGRAMS: Dryer Programs: AI Dry, Activewear, Blanket Refresh, Easy Ironing, Jeans, Large Load, Overnight Dry, Power Dry, Rack Dry, Quick Dry, SteamFresh™, Timed Dry, Towels, XL Load, Wrinkle Prevention, Air Dry, Perm. Press, Pet Care, Low Temp Dry, SteamSanitaryᵀᴹ, Super Dry, Bedding, Delicates, Heavy Duty, Normal, Small Load
• DRYER PROGRAMS: Dry Modes: No
• DRYER PROGRAMS: No. of Dryer Options: 11
• DRYER PROGRAMS: No. of Dryer Programs: 26
•
Specifications
| Product Name | 7.4 cu. ft. Ultra Large Capacity Smart Front Load Electric Dryer with TurboSteam, AI Sensing and Hybrid Electronic Controls with LCD Display |
|---|---|
| SKU | DLEX5800A |
| Vendor | LG |
| Color | White |
| Dimensions (in.) | 27.0" x 39.0" x 29.75" |
| Load Type | Front Load |
| Fuel Type | Electric |
| UPC | 195174126370 |
