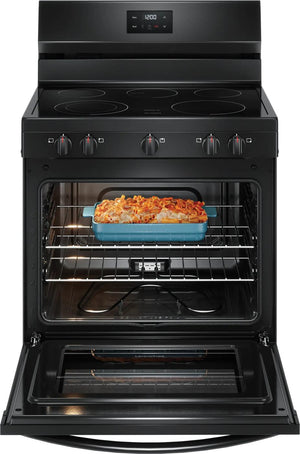

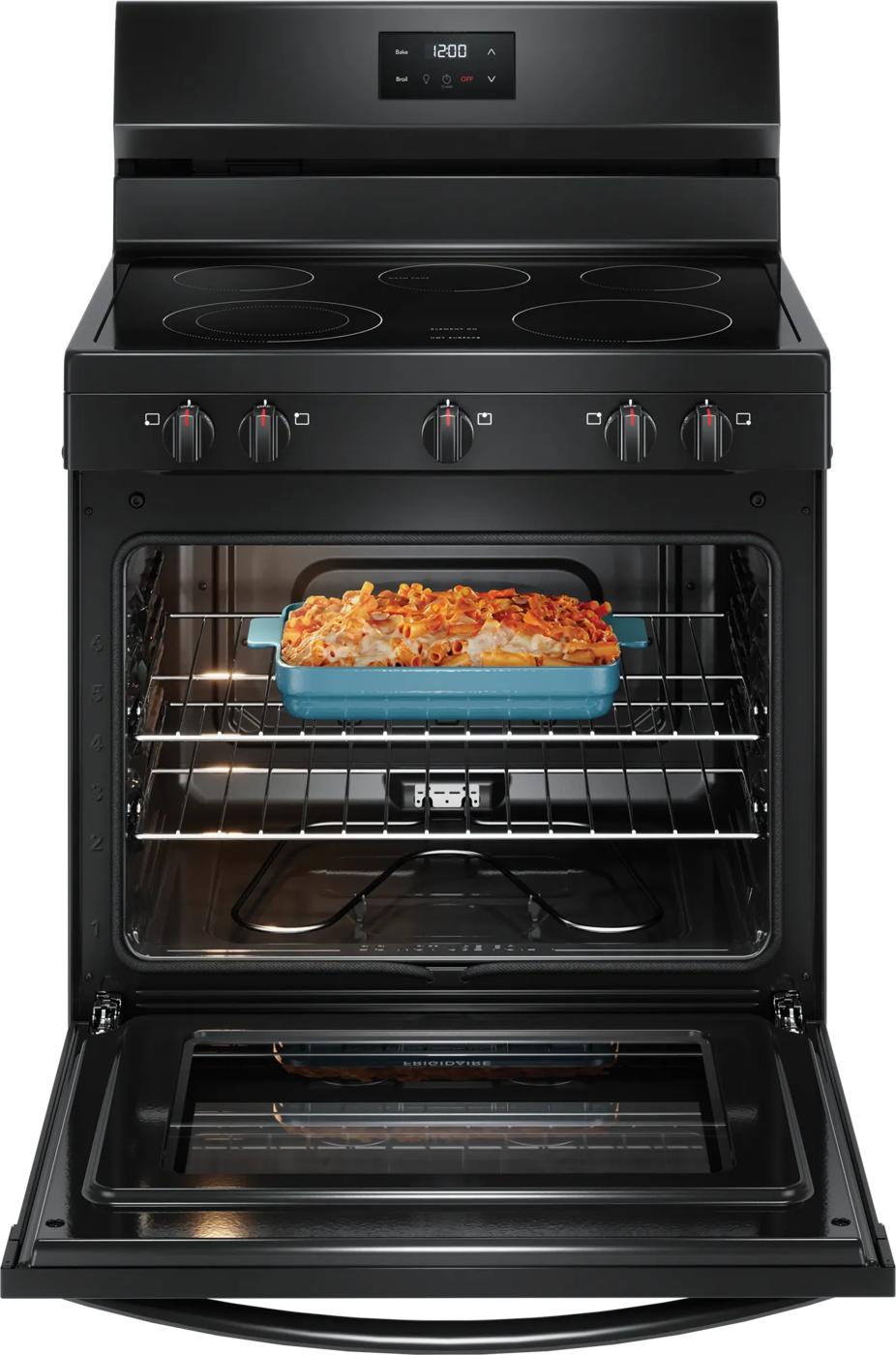

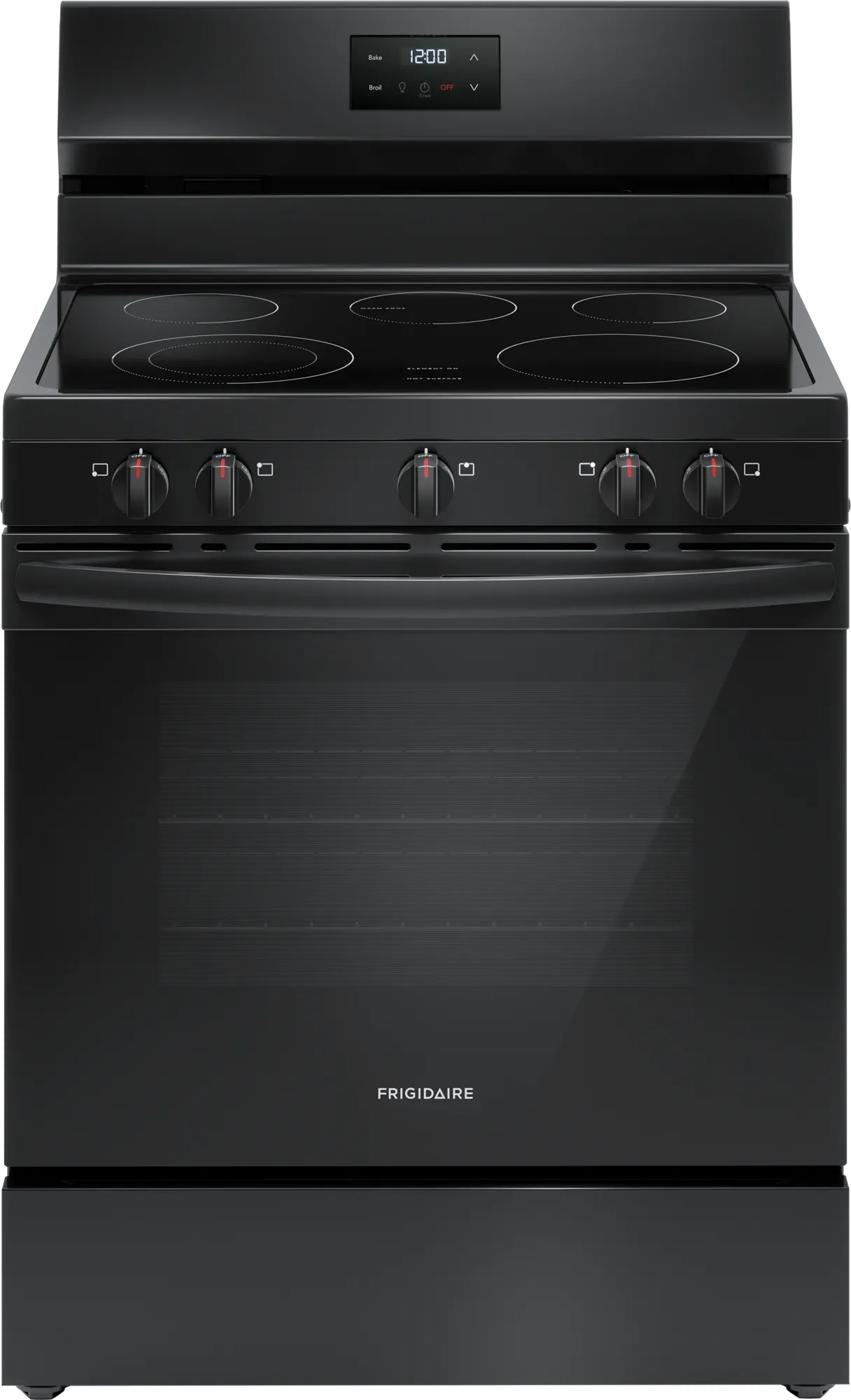

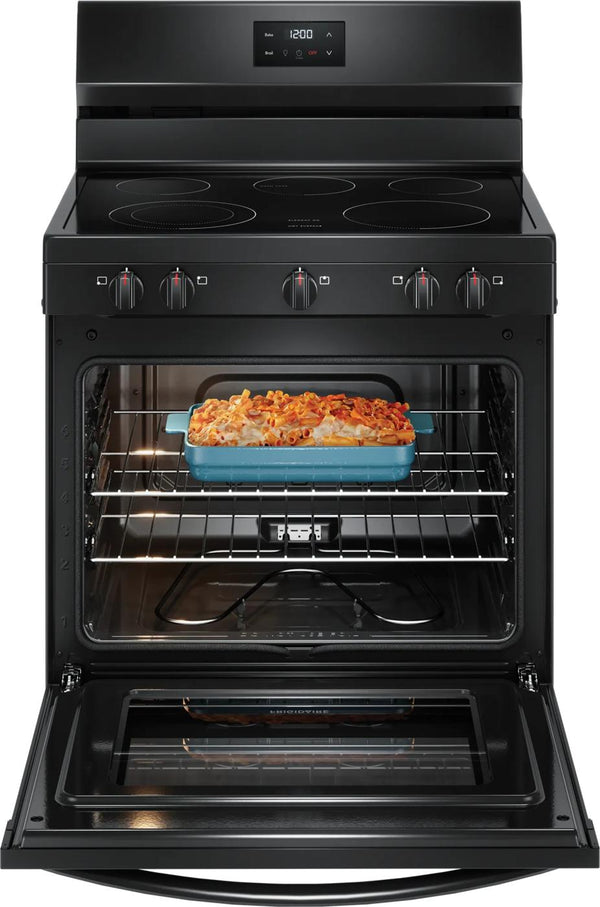

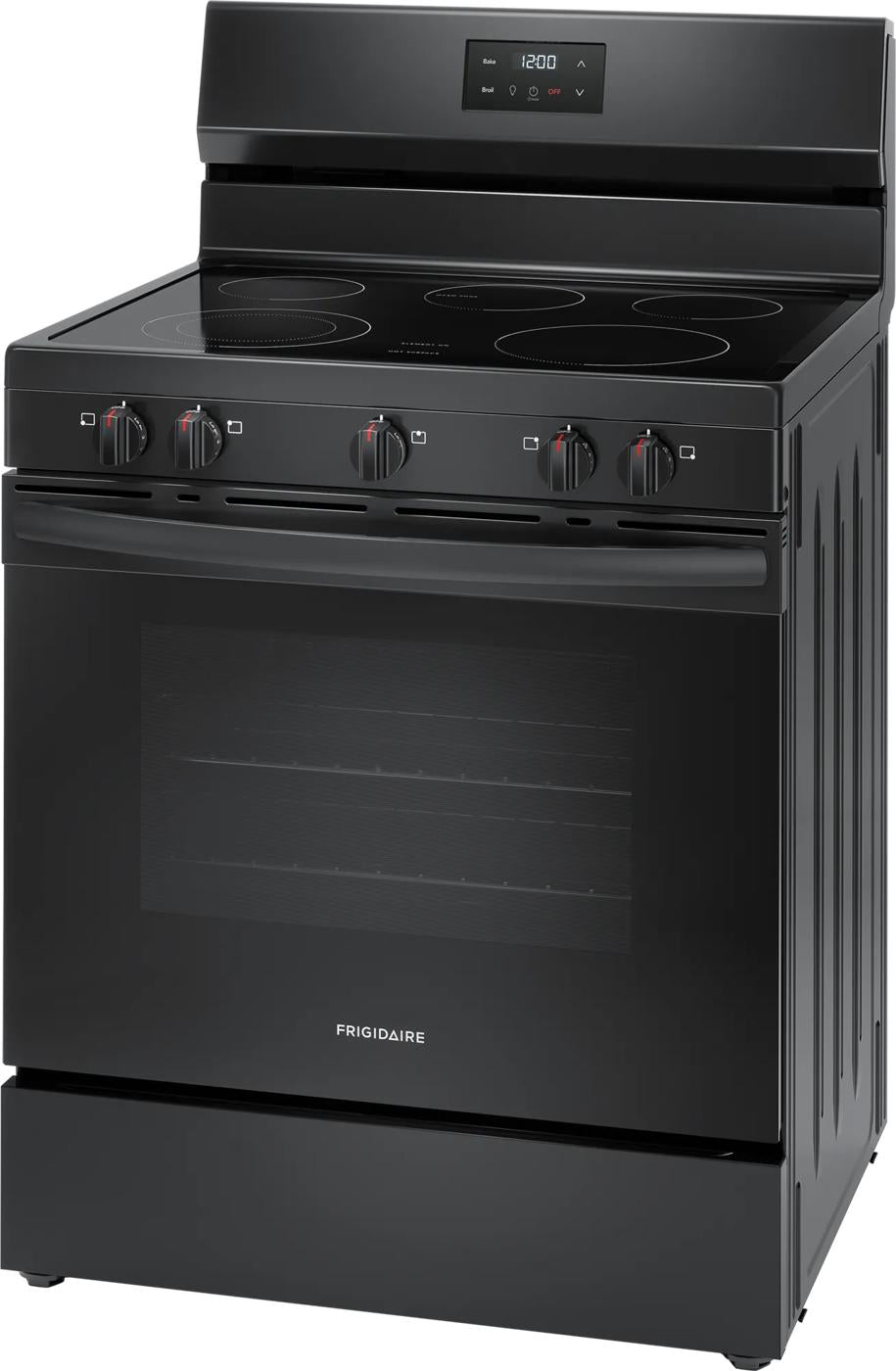

30" Electric Range

The Frigidaire 30" Electric Range allows you to get meals on the table faster with our 3,000W Quick Boil Element. Enjoy more cooktop flexibility with five cooktop elements designed to handle all of your cooking needs, including the 2-in-1 Dual Expandable Element. Plus, enjoy our redesigned Extra Wide Store-More™ Storage Drawer, now with more space to store your unused oven racks and cookware.
• Features:
• Get meals to the table faster with the powerful 3,000W Quick Boil element.

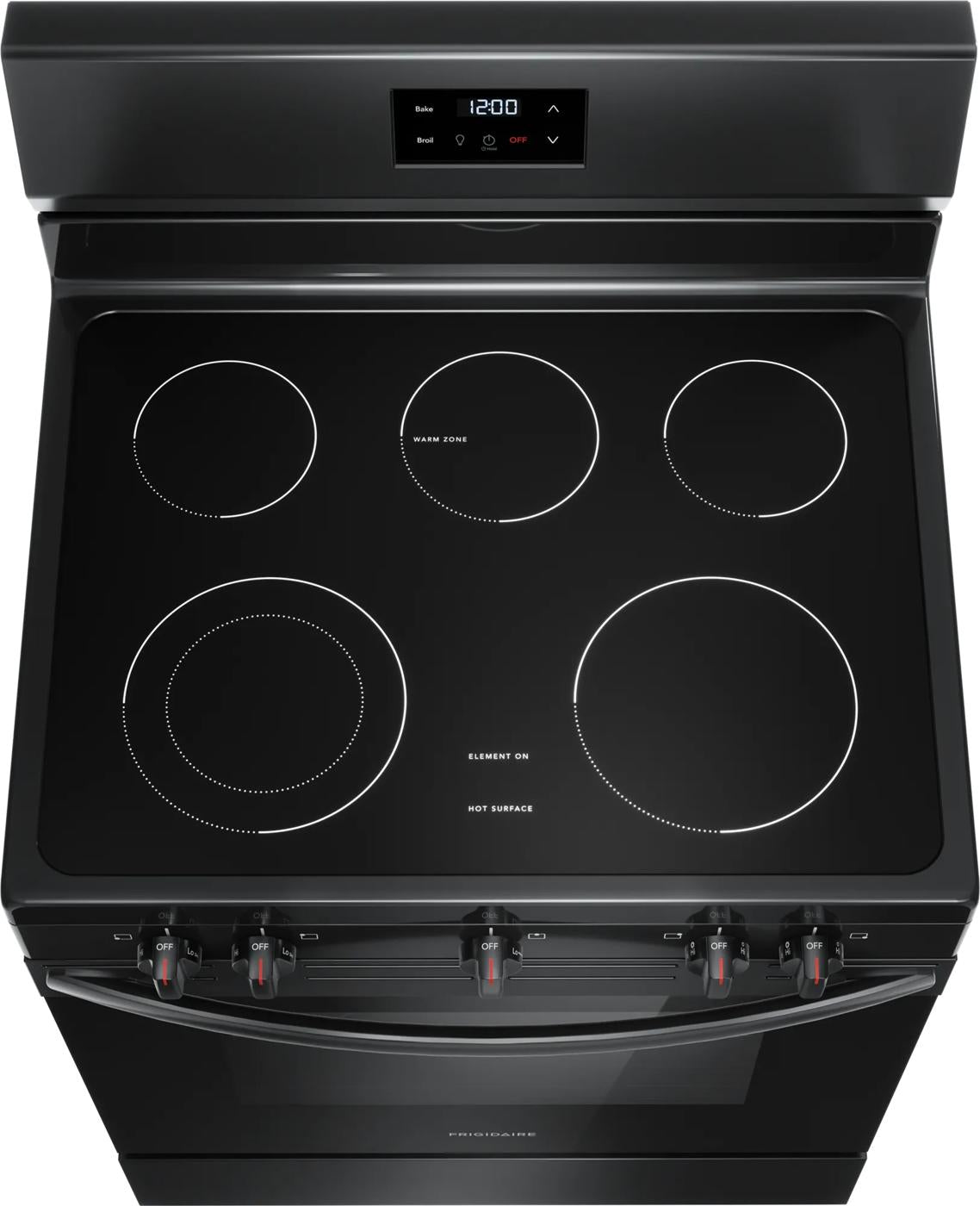

• Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
• Designed to deliver even baking results, every time.

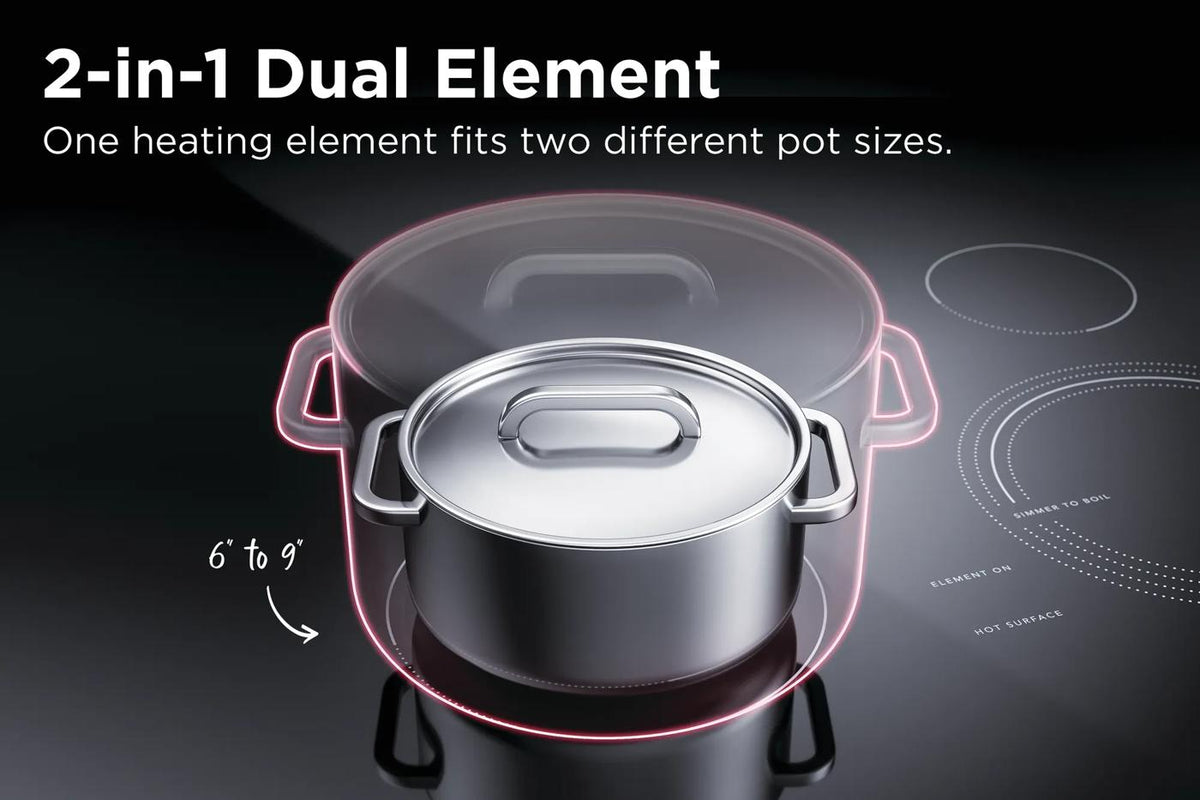

• Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
• Large oven capacity allows you to cook more at once.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Keep food warm until everything - and everyone - is ready.

• Specs:
• COOKTOP PERFORMANCE
• Right Front Element Burner Size : 9"
• Right Rear Element Burner Size : 6"
• Left Front Element Burner Size (Small) : 6"
• Left Front Element Burner Size (Large) : 9"
• Left Rear Element Burner Size : 6"
• Right Front Element Burner : 3000 Watts
• Right Rear Element Burner : 1200 Watts
• Left Front Element Burner (Small) : 1400 Watts
• Left Front Element Burner (Large) : 3000 Watts
• Left Rear Element Burner : 1200 Watts
• Center Rear Element Burner : 100 Watts
• Keep Warm Burner Location : Center Rear
•
• OTHER SPECIFICATIONS
• Cooking Surface Type : Smooth
• Element On Indicator Light : Yes
• Hot-Surface Indicator Light : Yes
• Bake : Yes
• Broil : Yes
• Kitchen Timer : Yes
• Off : Yes
• Oven Light : Yes
• Preheat : Yes
• Up / Down Arrow : Yes
• Warm Zone : Yes
• Program Fahrenheit or Celsius : Yes
• Bake Element : 2600 Watts
• Bake Element Pass : 4
• Bake Element Type : Raised
• Broil Element : 3000 Watts
• Broil Element Pass : 4

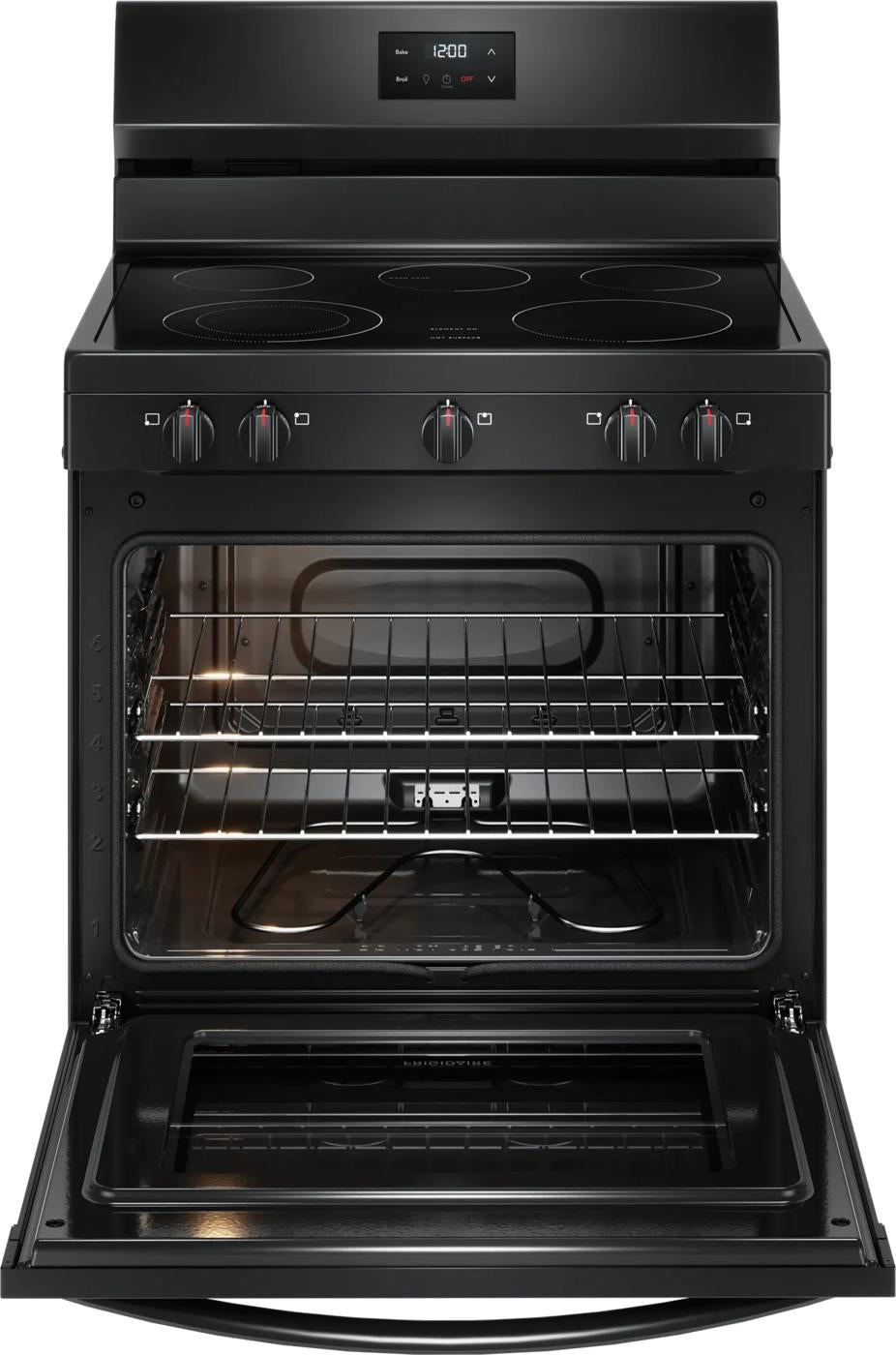

• Number of Rack Positions : 6
• Oven Interior Color : Midnight Black
• Oven Light Quantity : 1
• Oven Light Type : Halogen
• Oven Light Watts : 40 Watts
• Rack Position Type : Embossed
• Rack Type 1 : Flat
• Rack Type 1 Quantity : 2
• Drawer Handle Style : Integrated
• Drawer Type : Storage
• Control Location : Rear
• Display Interface Color : White

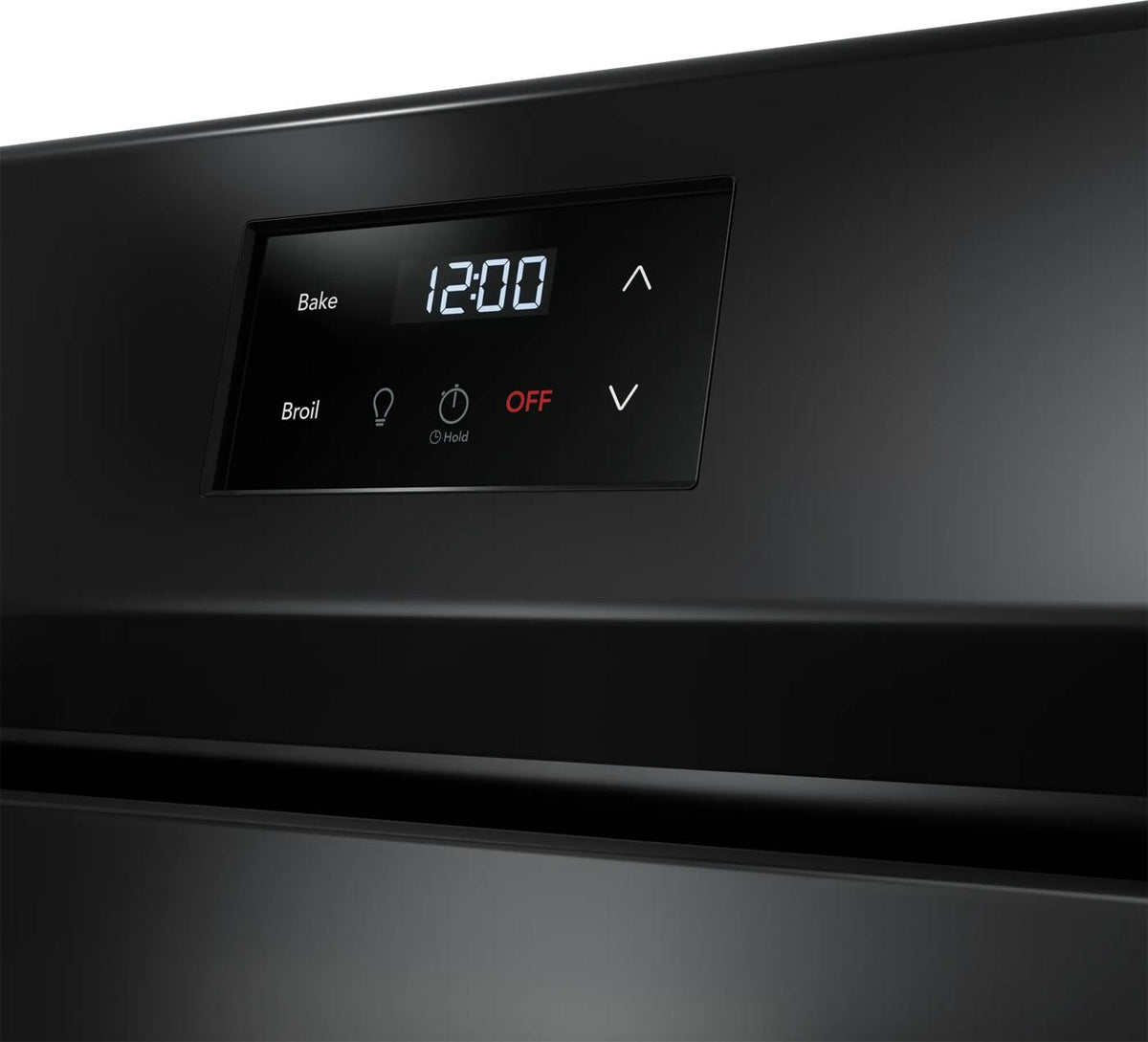

• Display Type : LED

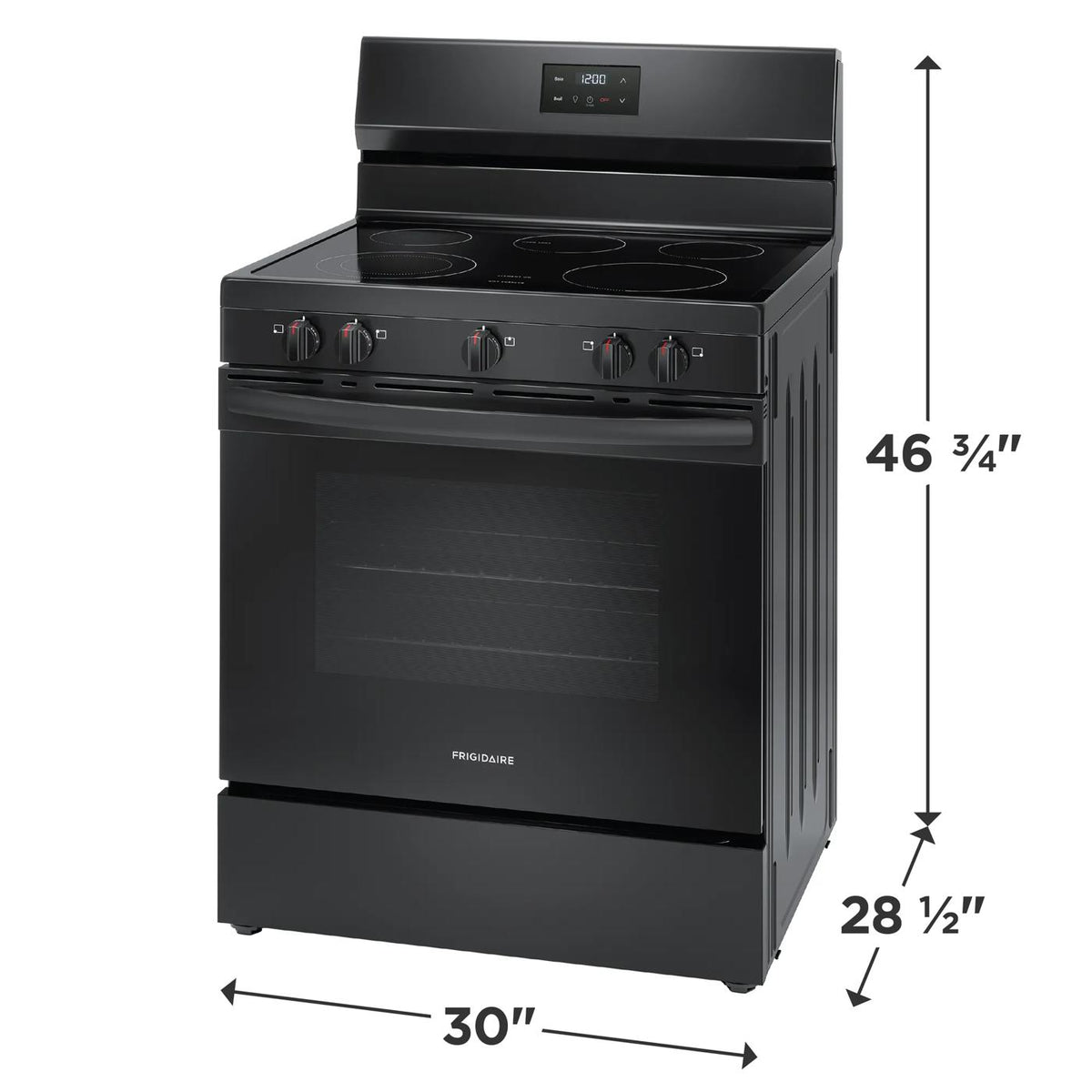

• Minimum Height : 46 3/4"
• Depth With Door 90° Open : 47 5/16"
• Depth With Handle : 28 1/2"
• Oven Interior Height : 18 1/8"
• Oven Interior Width : 25 3/16"
• Oven Interior Depth : 19 7/8"
• Oven Capacity : 5.3 Cu. Ft.
• Connected Load @ 240V : 12 kW
• Minimum Circuit Required : 40 Amps
• Voltage Rating : 240 V
• Adjustable Leveling Legs : Yes
• Frigidaire Fit Promise : Yes
• Product Weight : 160 lbs
• Prop 65 Label : Yes
• Warranty - Labor : 1 Year
• Warranty - Parts : 1 Year
• AB-1200 : Information available at frigidaire.com/en/ab1200
• RoHS : Yes
• UL Listed : Yes
•
