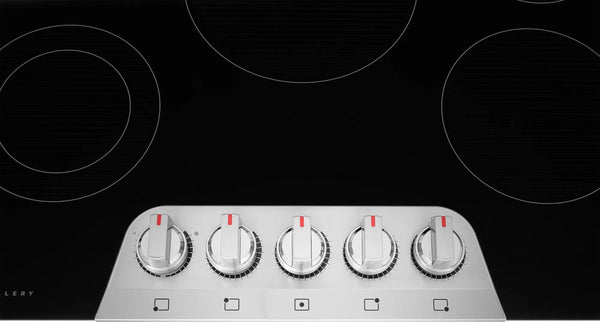

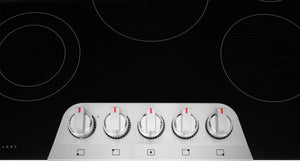

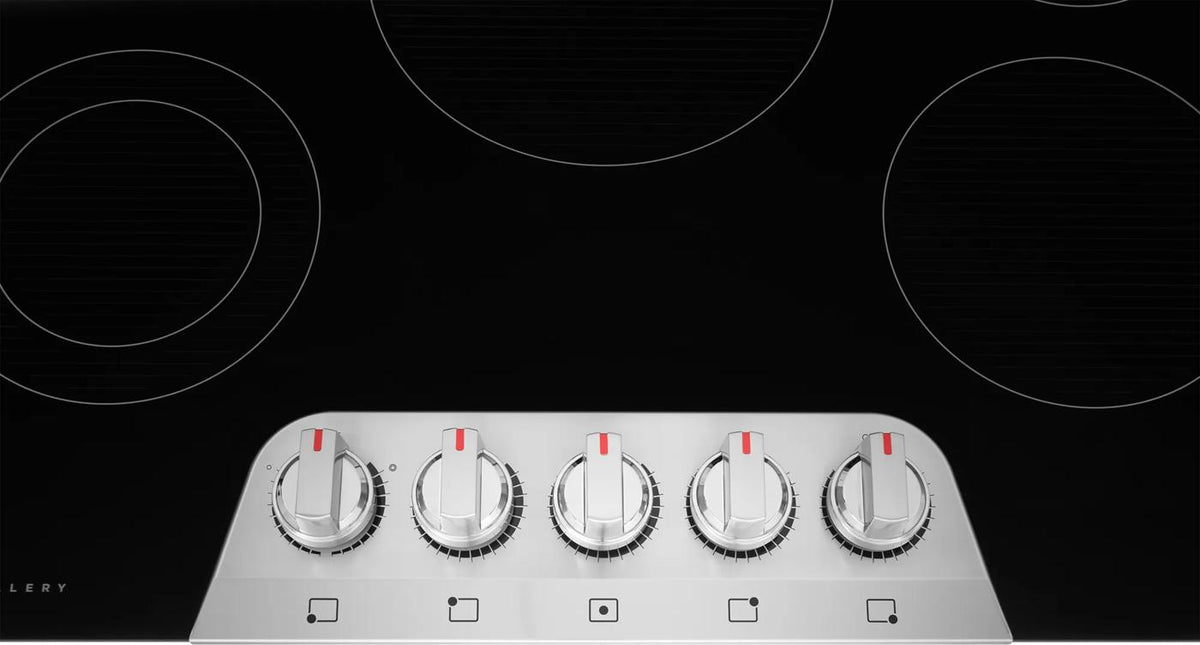

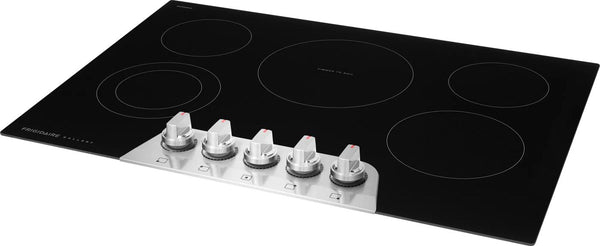

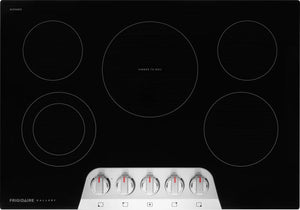

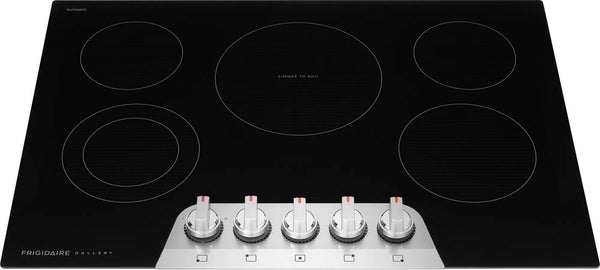

30" Electric Cooktop

The Frigidaire Gallery 30" Electric Cooktop delivers powerful, precise performance with five flexible elements, including a 3,200-Watt EvenTemp™ element and a versatile 2-in-1 Dual Element. Features sleek backlit LED knobs and a smooth glass surface that makes cooking and cleanup easier. And with the Frigidaire® Fit Promise, you can install with confidence knowing it’s guaranteed to fit your existing cutout, or we’ll cover the modification cost up to $100.
• Features:

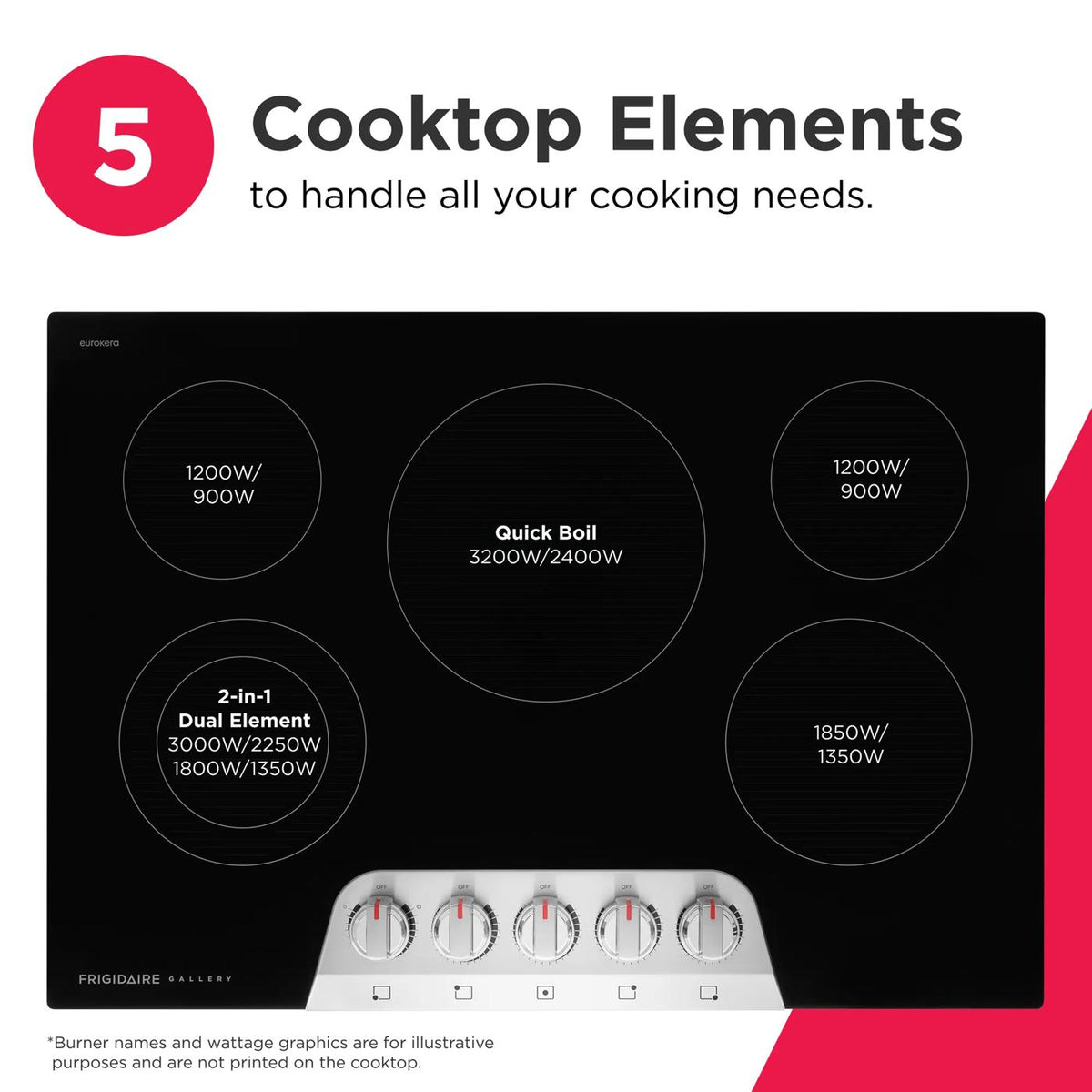

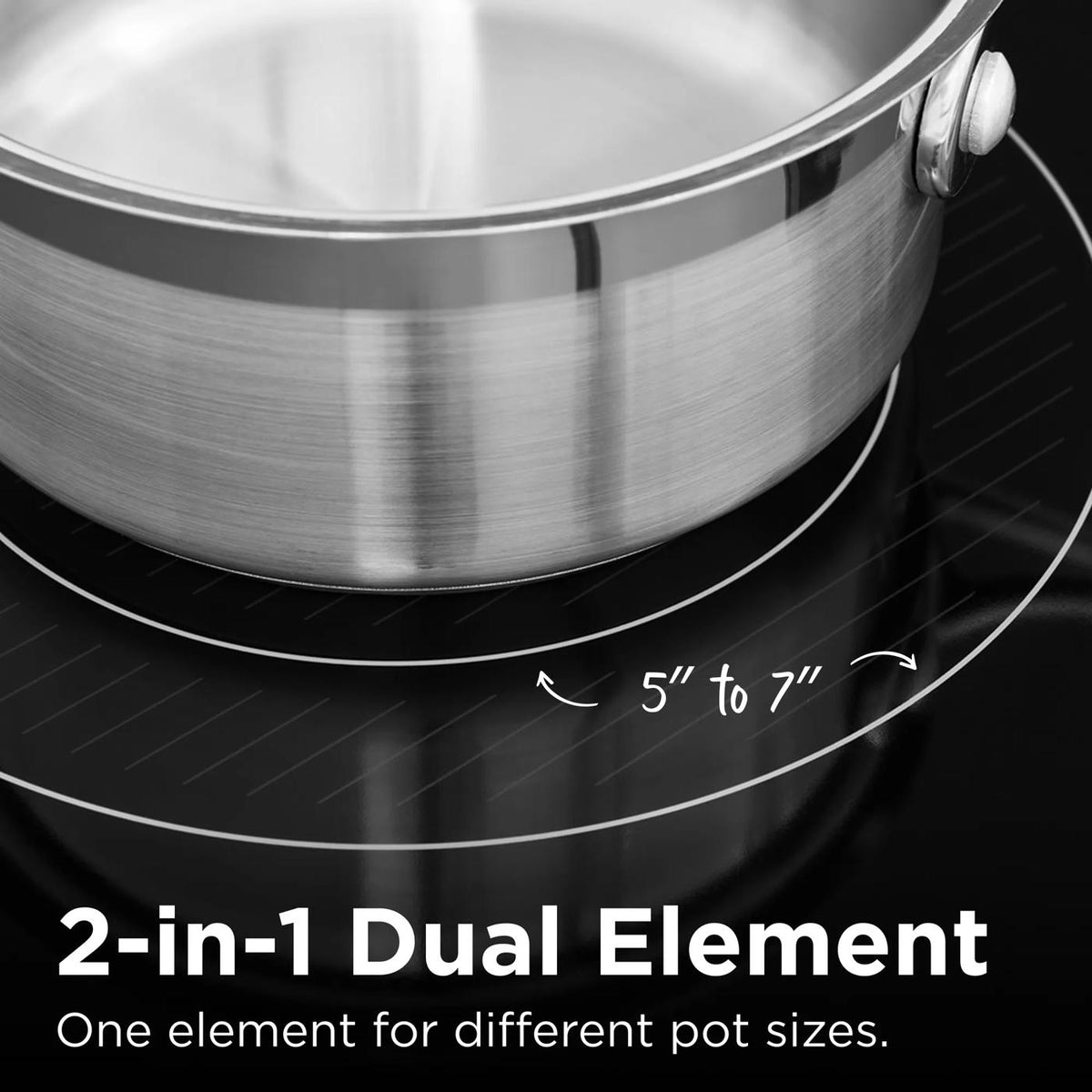

• With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200-Watt EvenTemp™ Element, a versatile 2-in-1 Dual Element, and convenient Keep Warm Zone.

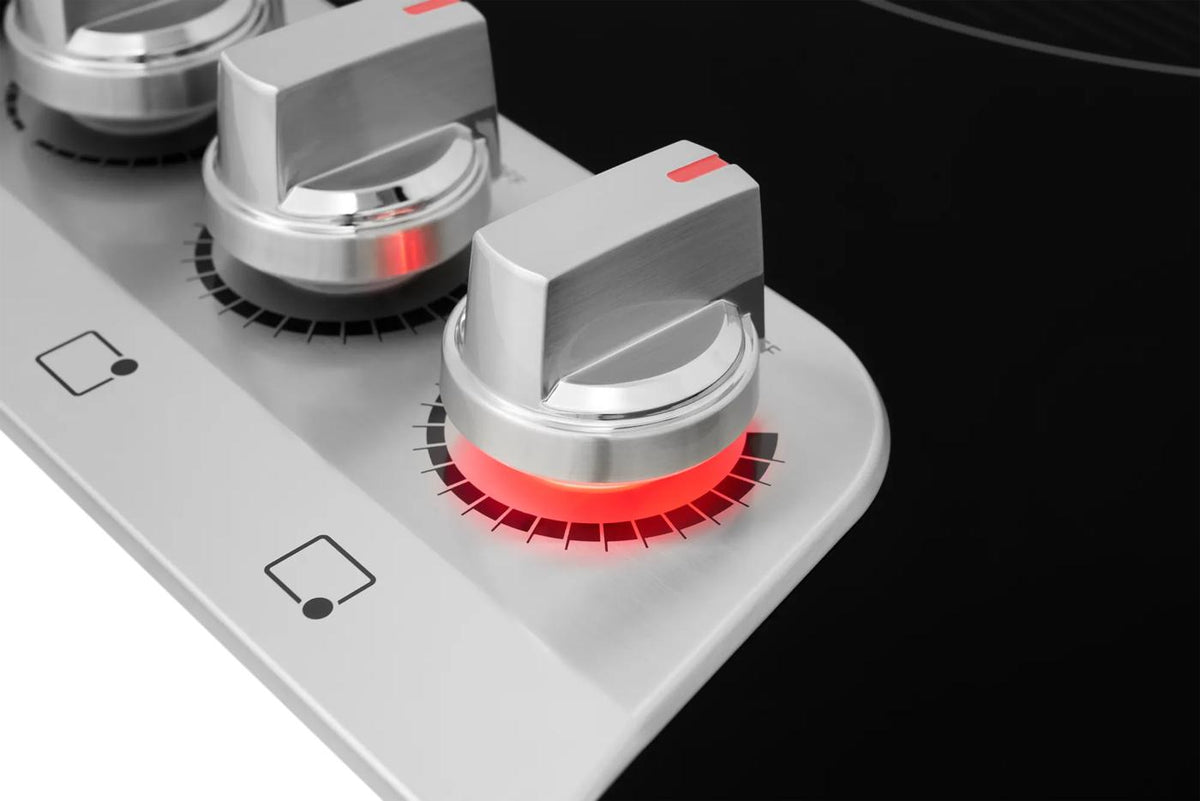

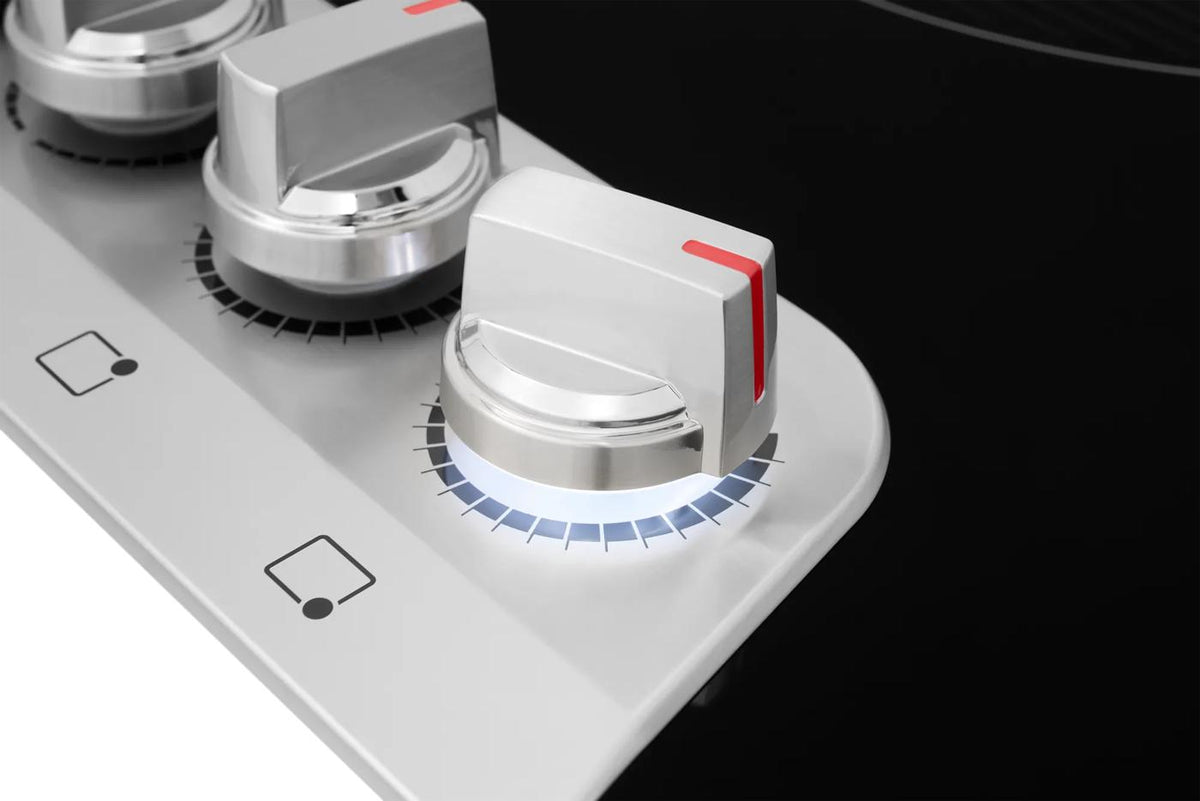

• Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
• We promise that your new 30" Frigidaire electric cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
• Experience fast, even heat with our 3,200-Watt EvenTemp™ element—reducing hot and cold spots for consistent results every time.
• Expands from 9" to 12" to accommodate larger pots or cookware.
• Easily wipe away spills from the smooth glass cooktop.
• Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
• Keeps food warm until everything - and everyone - is ready.
• Cooktops are approved for installation above any of our Frigidaire electric wall ovens.

• Specs:
• EXTERIOR
• Backlit Knobs : Yes
•
• COOKTOP PERFORMANCE
• Right Front Element Burner Size : 7"
• Right Rear Element Burner Size : 6"
• Left Front Element Burner Size (Small) : 5"
• Left Front Element Burner Size (Large) : 7"
• Left Rear Element Burner Size : 6"
• Center Rear Element Burner Size : 9"
• Right Front Element Burner : 1800 Watts
• Right Rear Element Burner : 1200 Watts
• Left Front Element Burner (Small) : 750 Watts
• Left Front Element Burner (Large) : 1800 Watts
• Left Rear Element Burner : 1200 Watts
• Center Rear Element Burner : 3200 Watts
•
• OTHER SPECIFICATIONS
• Cooktop: Cooking Surface Type : Smooth
• Cooktop: Hot-Surface Indicator Light : Yes
• Display: Control Location : Front
• Dimensions and Volume: Cutout Height : 5"
• Dimensions and Volume: Minimum Cutout Width : 28 1/2"
• Dimensions and Volume: Minimum Cutout Depth : 19 5/8"
• Dimensions and Volume: Maximum Cutout Width : 29 7/8"
• Dimensions and Volume: Maximum Cutout Depth : 20 1/2"
• Electrical Specifications: Amps @ 240 Volts : 38.3 Amps
• Electrical Specifications: Connected Load @ 240V : 9.2 kW
• Electrical Specifications: Minimum Circuit Required : 40 Amps
• Electrical Specifications: Voltage Rating : 240 V
• General Specifications: Frigidaire Fit Promise : Yes
• General Specifications: Product Weight : 31 lbs
• General Specifications: Prop 65 Label : Yes
• General Specifications: Warranty - Labor : 1 Year
• General Specifications: Warranty - Parts : 1 Year
• General Specifications: AB-1200 : Information available at frigidaire.com/en/ab1200
• Installation: Installed Over a Wall Oven : Yes
• Installation: Power Supply Connection Location : Right Center
• Certifications and Approvals: ADA Compliant : Yes
• Certifications and Approvals: CSA Listed : Yes
• Certifications and Approvals: UL Listed : Yes
•
