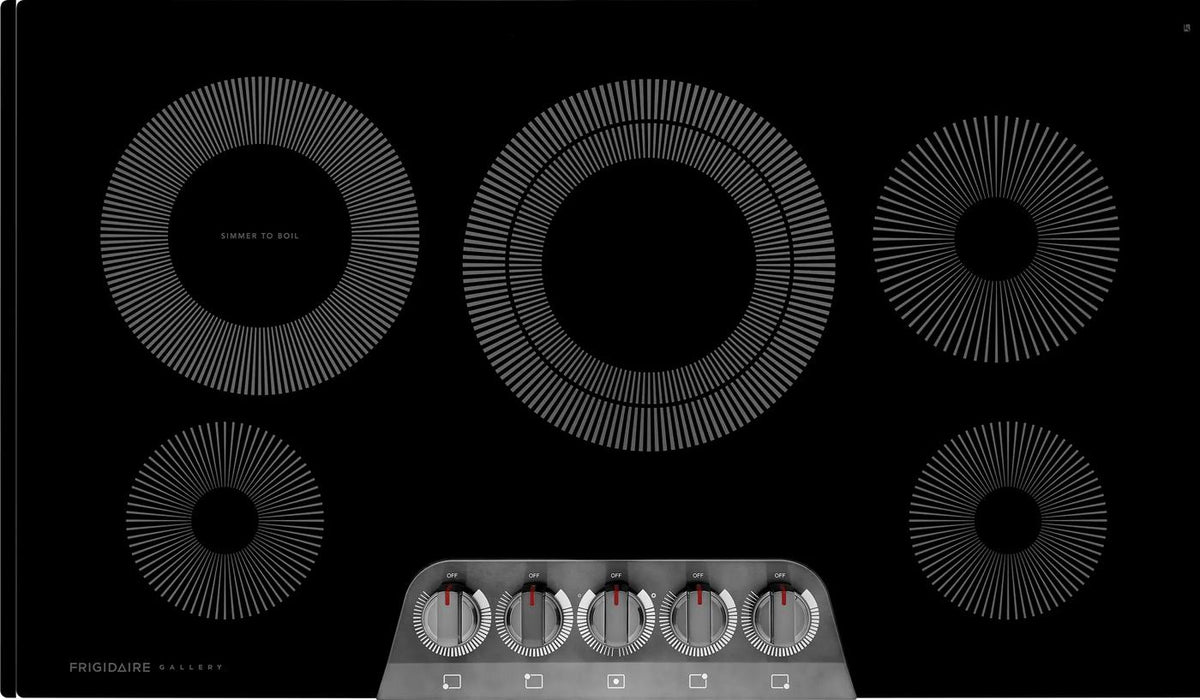

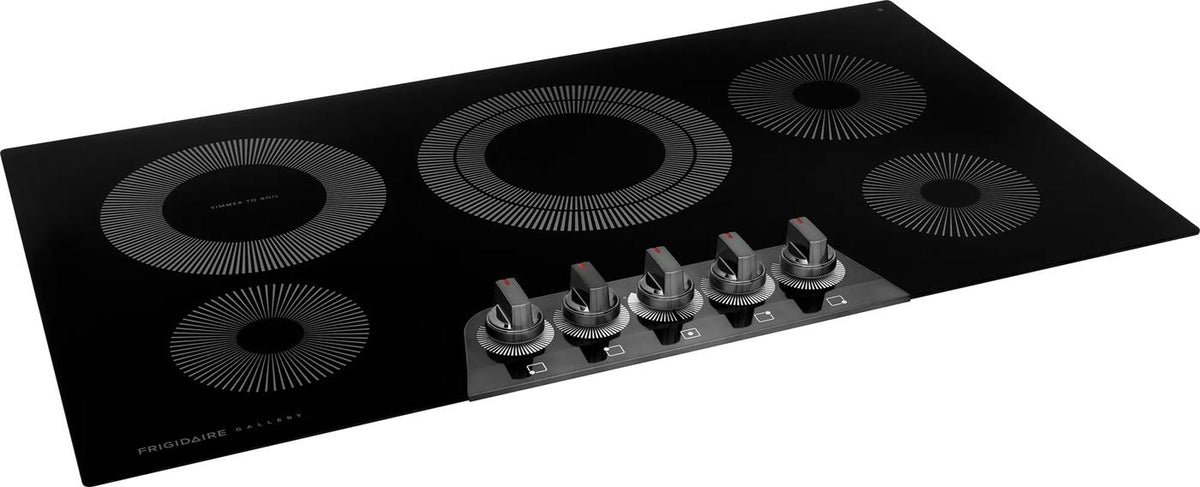

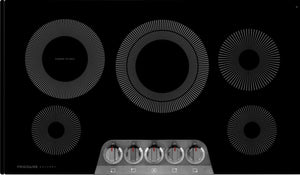

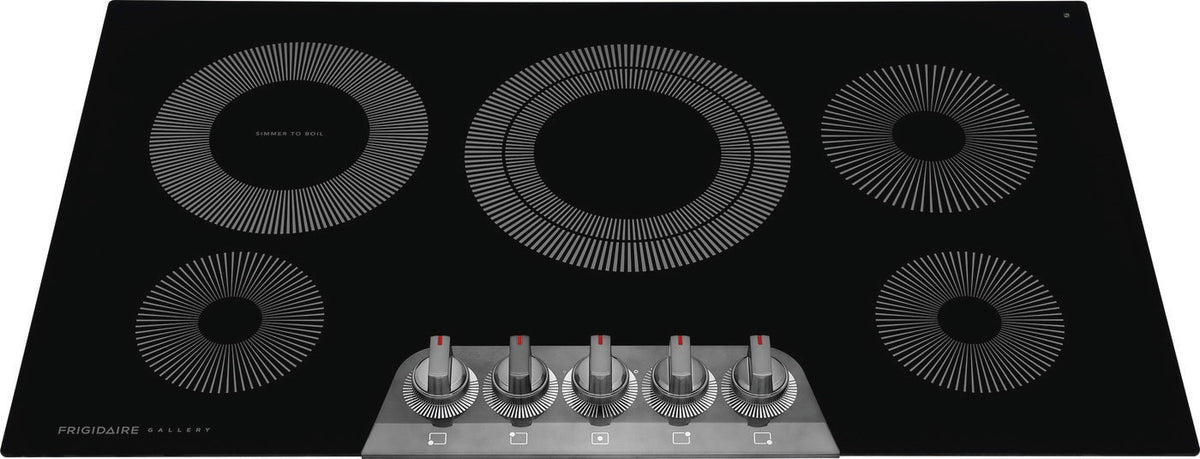

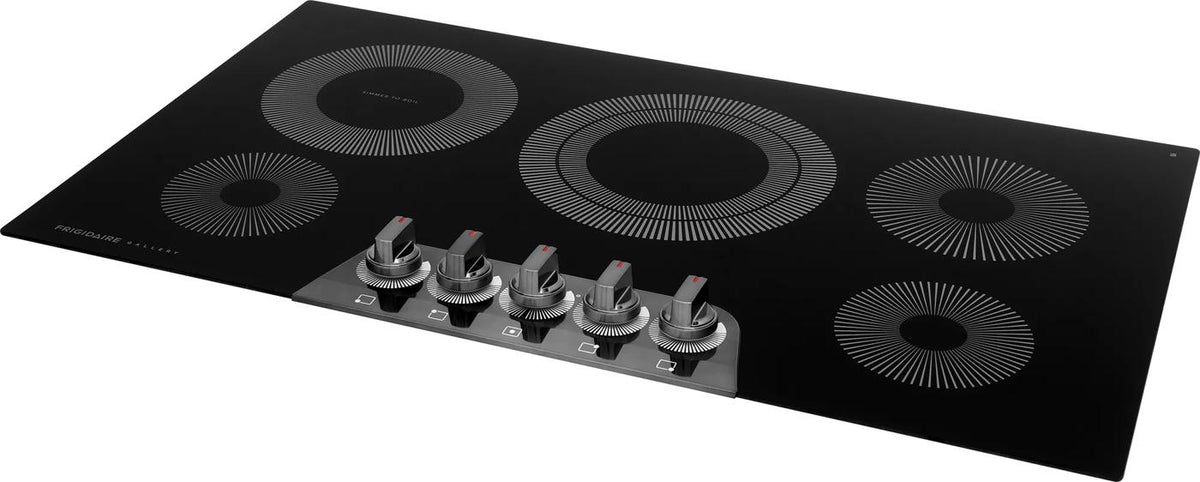

36" Electric Cooktop

The Frigidaire Gallery 36" Electric Cooktop provides delicious results every time with the EvenTemp® Element that delivers consistent heat across the elements surface, reducing hot and cold spots in your pan. Enjoy ultimate cooking flexibility with powerful elements designed to meet all of your cooking needs, including a Dual Expandable Element and Keep Warm Zone. Plus, these cooktops feature bright, backlit LED knobs that light up when the cooktop is in use, conveniently placed on the front of the cooktop.
• Features:
• Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
• Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element, Dual Expandable Element, and convenient Keep Warm Zone.
• Lights up when the burner is turned on.
• We promise that your new 36" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
• Our convenient 2-in-1 element expands from 9" for smaller pots to 12" for larger cookware, providing more cooktop flexibility.
• Keep food warm until everything - and everyone - is ready.

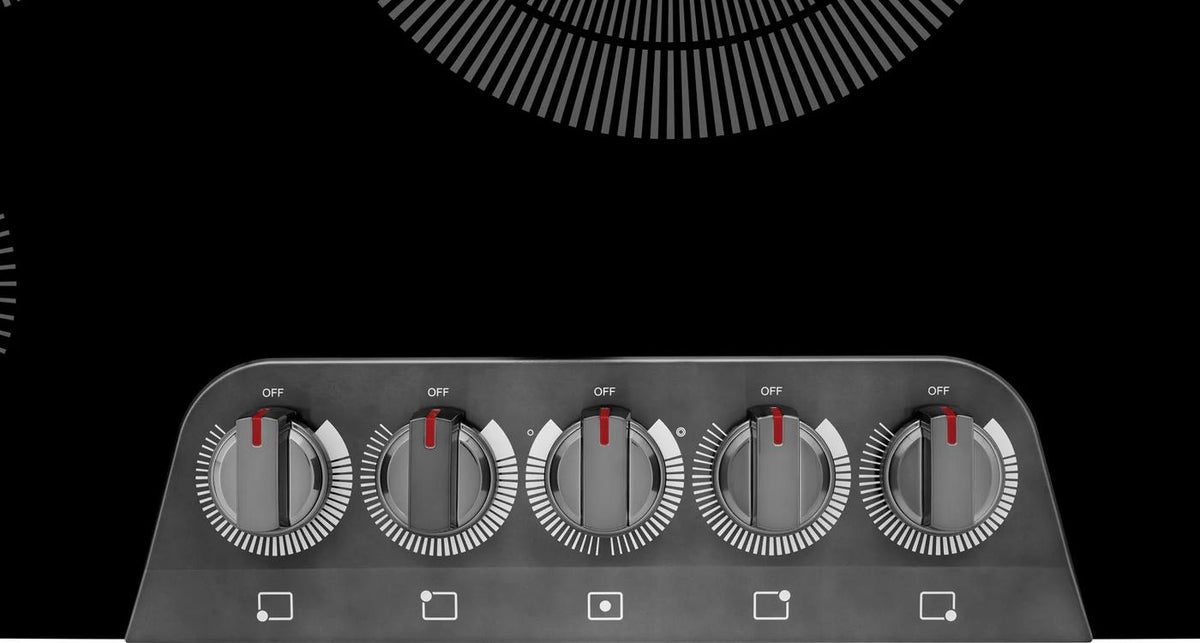

• Located on the front of the cooktop so you to adjust the temperature without reaching over hot items.
• Wipe away spills more easily with the smooth ceramic glass cooktop.
• Cooktops are approved for installation above any of our Frigidaire electric wall ovens.

• Specs:
• CONTROLS
• Sabbath Mode : No
•
• COOKTOP PERFORMANCE
• Right Front Element Burner Size : 6"
• Right Rear Element Burner Size : 7"
• Left Front Element Burner Size : 6"
• Left Rear Element Burner Size : 9"
• Center Rear Element Burner Size (Small) : 9"
• Center Rear Element Burner Size (Large) : 12"
• Right Front Element Burner : 1200 Watts
• Right Rear Element Burner : 1800 Watts
• Left Front Element Burner : 1200 Watts
• Left Rear Element Burner : 3200 Watts
• Center Rear Element Burner (Small) : 1800 Watts
• Center Rear Element Burner (Large) : 3000 Watts
•
• OTHER SPECIFICATIONS
• Cooking Surface Type : Smooth
• Hot-Surface Indicator Light : Yes
• Control Location : Front
• Display Type : Mechanical

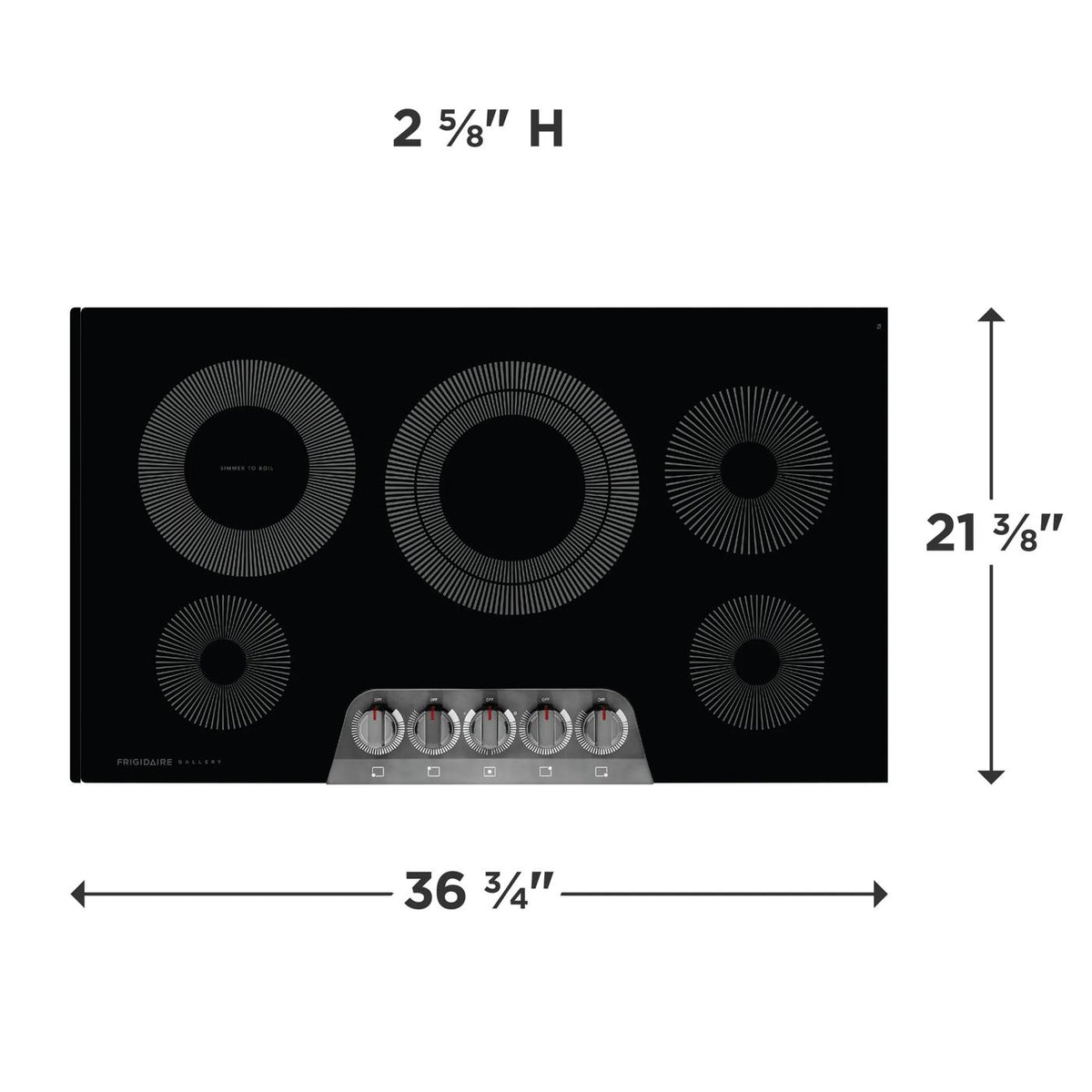

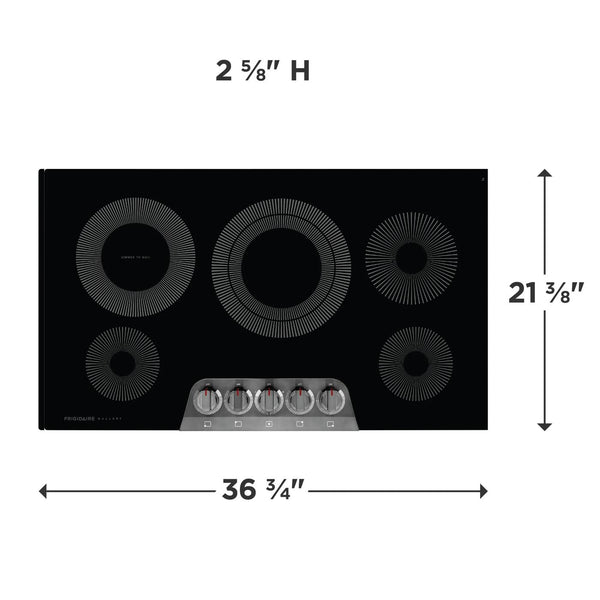

• Cutout Height : 5"
• Minimum Cutout Width : 33 7/8"
• Minimum Cutout Depth : 19 1/8"
• Maximum Cutout Width : 36 1/8"
• Maximum Cutout Depth : 20 1/2"
• Amps @ 240 Volts : 43.3 Amps
• Connected Load @ 240V : 10.4 kW
• Minimum Circuit Required : 50 Amps
• Voltage Rating : 240 V
• Frigidaire Fit Promise : Yes
• Product Weight : 35 lbs
• Prop 65 Label : Yes
• Warranty - Labor : 1 Year
• Warranty - Parts : 1 Year
• AB-1200 : Information available at frigidaire.com/en/ab1200
• Installed Over a Wall Oven : Yes
• Power Supply Connection Location : Right Center
• ADA Compliant : Yes
• CSA Listed : Yes
• UL Listed : Yes
•
