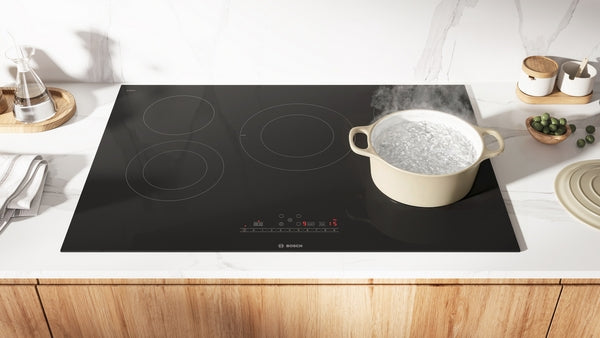

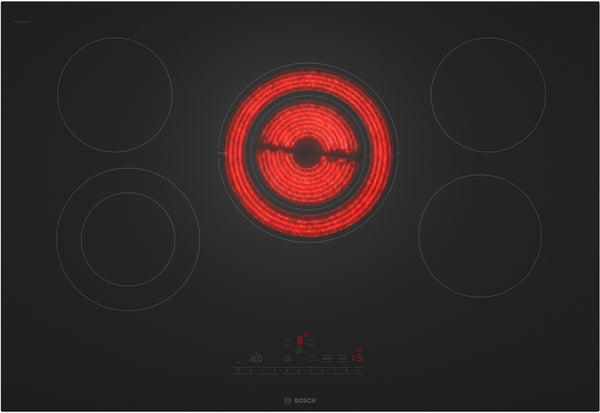

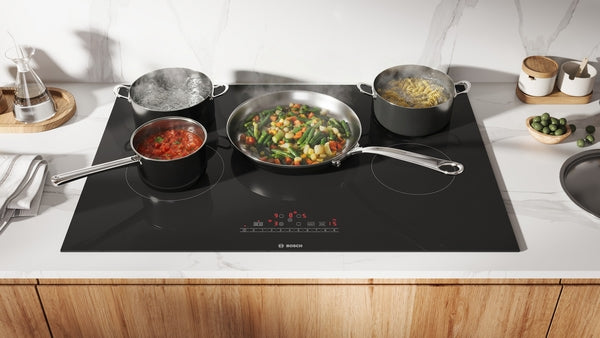

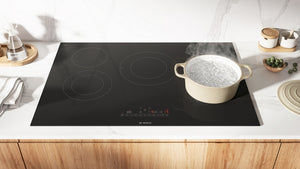

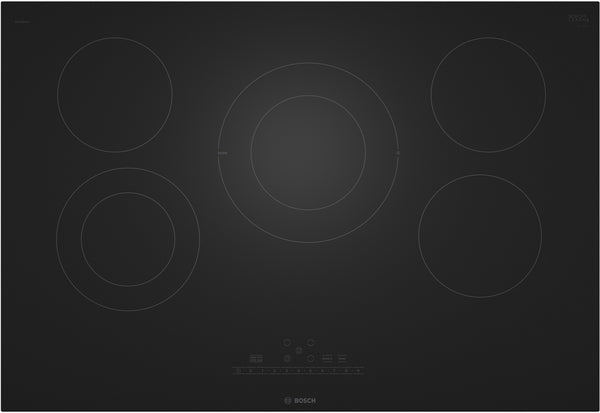

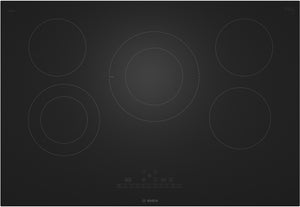

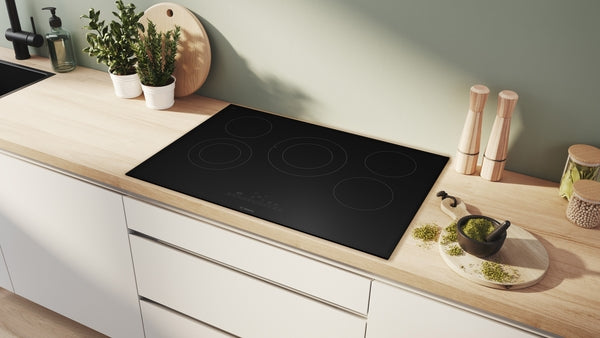

800 Series, Electric Cooktop, 30, Without Frame

• Features:
• 17 Levels of Power
• Accomodate different pan sizes

• Specs:
• GENERAL
• Product group: Hob
• Brand: Bosch
• Product name / series name: Cooking zone ceramic
• SKU: NET8062UC
• Internal article number: NET8062UC
• EAN code: 4242005543281
• Construction type: Built-in

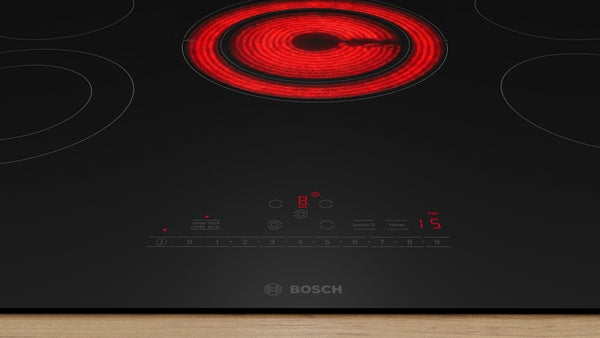

• Type of control: Electronic
• Type of control: Touch Control
• Energy input: Electric
• Total number of cooktop burners: 5
• Number of gas burners: 0
• Number of electric cooking zones: 5
• Number of electric elements: 0
• Number of radiant elements: 5
• Number of halogen elements: 0
• Number of induction elements: 0
• Number of electric warming zones: 0
• Location of control panel: Front
• Basic surface material: Ceramic

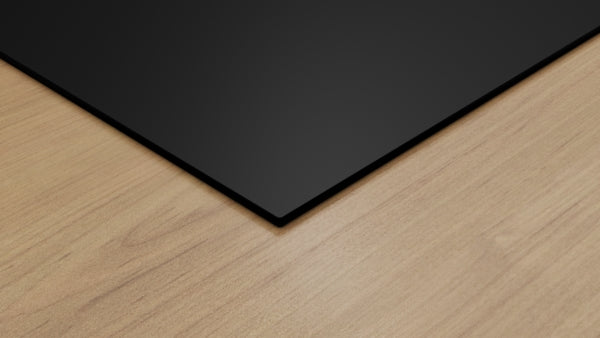

• Type of frame: Frameless
• Current (A): 40/30
• Overall appliance dimensions (HxWxD) : 1/4"+4 " x 31" x 21 1/4"
• Dimension of 1st heating element : 5" ; 7"
• Volts (V): 240/208
• Frequency (Hz): 60
• Power cord length (cm): 96
• Dimension of 3rd heating element : 6"
• Plug type: No Plug
• Height of the packed product (mm): 205
• Width of the packed product (mm): 955
• Depth of the packed product (mm): 615
• Minimum height for installation (mm): 505
• Maximum height for installation (mm): 508
• Product packaging dimensions (HxWxD) : 7 7/8" x 37 3/8" x 24"
• Minimum width for installation (mm): 731
• dishwasher safe pan support: No
• Maximum width for installation (mm): 734
• Depth for installation (mm): 100
• Net weight (kg): 11.9
• Gross weight (kg): 15.4
• Automatic programmes: No
• Location of the heating element: front left
• Type of heating element: Radiant heating
• Dimension of the heating element: 120 ; 180
• Power of the heating element: 800.0 ; 2000
• Location of 2nd heating element: center left
• Location of 3rd heating element: back left
• Burners with booster: Rear middle
• Type of 3rd heating element: Radiant heating
• Dimension of 3rd heating element (mm): 140
• Location of 4th heating element: middle back
• Location of 5th heating element: back right
• Type of 5th heating element: Radiant heating
• Dimension of 5th heating element (mm): 140
• Power of 5th heating element (kW): 1200.0
• Location of 6th heating element: center right
• Minimum distance from counter front : 2 1/4
• Power on indicator: Yes
• Minimum distance from rear wall : 2
• Plate on indicator: 1
• Required cutout size (HxWxD) : 4 " x 28 3/4 " x 19 7/8 "
• Type of regulation: Stepless energy regulated
• Type of lid: Without
• Ignition system: No
• Main on/off switch: Yes
• Safety device: ;Child lock;Safety shut-off
• Timer: Yes
• Sealed Burners: No
• UPC code: 825225982739
• Gross weight : 34.000
• Net weight : 26.000
•
